Fuel Tank, Filter and Electric Fuel Pump

Most components of the standard fuel system are serviced by a simple nut, bolt or screw part for removal and installation. Refer to individual system illustrations for specific part references.

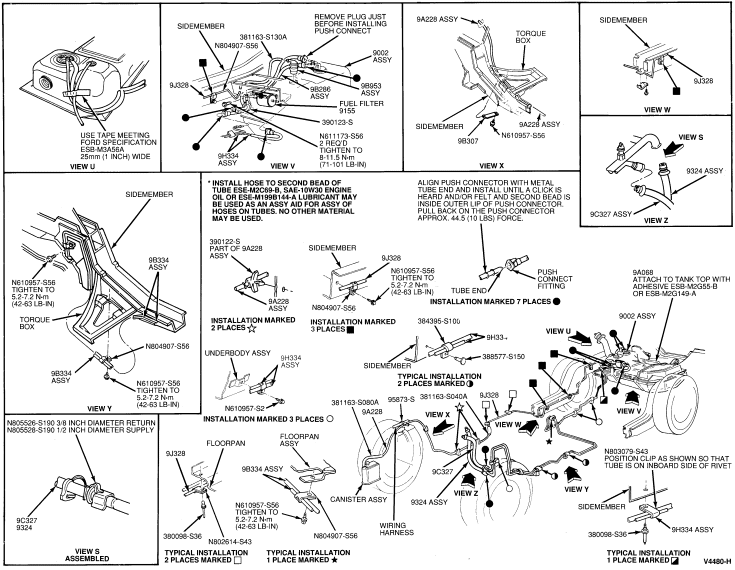

5.0L Engine

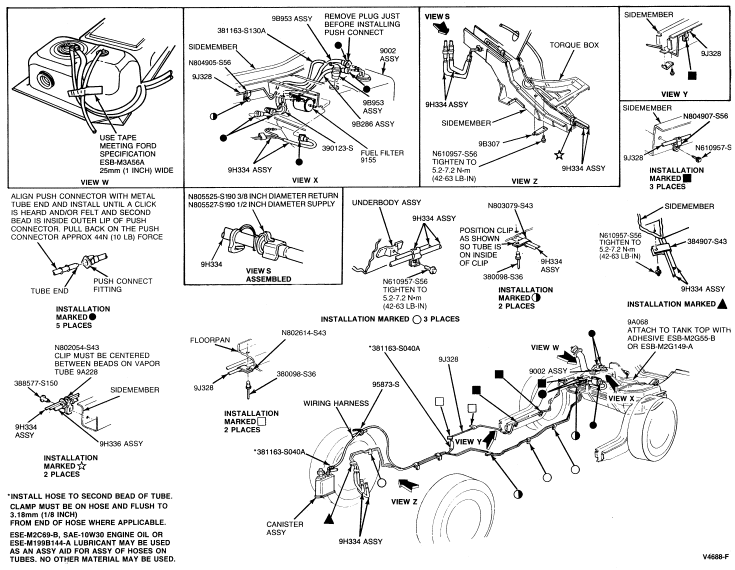

2.3L Engine
