Section 07-01B: Transmission, Automatic—AOD

1993 Mustang Workshop Manual

DISASSEMBLY AND ASSEMBLY

Transmission, Automatic—AOD

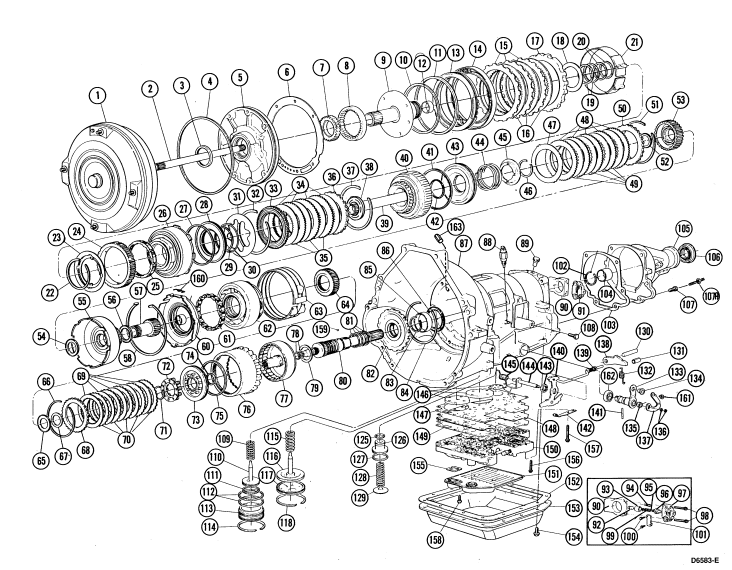

Transmission

Item	Part Number	Description
1	7902	Torque Converter
2	7F206	Direct Drive Shaft
3	7A248	Front Pump Seal
4	7D441	Front Pump O-Ring
5	7A103	Front Pump Body
6	7A136	Front Pump Gasket
7	7C010	Front Pump Drive Gear
8	7C011	Front Pump Driven Gear
9	7A106	Stator Support—Front Pump
10	7F225	Interm. Clutch Piston Inner Lip Seal
11	7F224	Interm. Clutch Piston Outer Lip Seal
12	7B258	Front Pump Bushing
13	7E005	Interm. Clutch Piston
14	7F222	Interm. Clutch Piston Return Springs and Retainer
15	7B442	Interm. Clutch External Spline Steel Plates (Sel.)
16	7B164	Interm. Clutch Internal Spline Friction Plates
17	7B066	Interm. Clutch Pressure Plate
18	7D014	No. 1 Thrust Washer (Front Pump) Selective
19	7D020	Stator Support Seal Rings (Rev. Clutch) (1 and 2)
20	7D019	Stator Support Seal Rings (Fwd. Clutch) (3 and 4)
21	7F196	Overdrive Band
22	389790-S	Interm. OWC Retaining Snap
23	7D191	Interm. OWC Retaining Plate
24	7F221	Interm. OWC Outer Race
25	7A089	Interm. One-Way Clutch Assy
26	7D044	Reverse Clutch Drum
27	7D403	Reverse Clutch Piston Seal (Outer)
28	7D402	Reverse Clutch Piston
29	7D404	Reverse Clutch Piston Seal (Inner)
30	7D256	Thrust Ring
31	7B070	Reverse Clutch Piston Return Spring
32	7A577	Retaining Ring
33	7B066	Reverse Clutch Front Pressure Plate
34	7E311	Forward and Reverse Clutch Internal Spline Friction Plate
35	7B442	Reverse Clutch External Spline Steel Plate
36	7F278	Forward and Reverse Clutch Rear Pressure Plate
37	7D483	Reverse Clutch Retaining Ring (Sel.)
38	7G008	No. 2 Needle Bearing
39	7F212	Turbine Shaft
40	7F207	Forward Clutch Cylinder and Turbine Shaft
41	7F227	Forward Clutch Piston Seal (Outer)
42	7F228	Forward Clutch Piston Seal (Inner)
43	7L140	Forward Clutch Piston
44	7F230	Forward Clutch Piston Return Spring
45	7F229	Return Spring Retainer
46	388099	Retaining Snap Ring
47	7E085	Waved Plate
48	7B442	Forward Clutch External Spline Steel Plate
49	7E311	Forward and Reverse Clutch Internal Spline Friction Plate
50	7F278	Forward and Reverse Clutch Pressure Plate
51	7D483	Retaining Snap Ring (Selective)
52	7G040	No. 3 Needle Bearing (Fwd. Clutch)
53	7D051	Forward Clutch Hub
54	7F244	No. 4 Needle Bearing
55	7A019	Reverse Sun Gear and Drive Shell Assy
56	7F244	No. 5 Needle Bearing
57	7A399	Forward Sun Gear
58	388501	Center Support Retaining Ring
60	7C363	Center Support Planetary
61	7504	Planetary OWC Cage Spring and Roller Assy
62	7A396	Planetary Assy
63	7D095	Reverse Band
64	7F236	Direct Clutch Hub
65	7F243	No. 7 Needle Bearing (Direct Clutch Inner)
66	388065	Retaining Snap Ring (Selective)
67	7F237	Thrust Spacer
68	7B477	Direct Clutch Pressure Plate
69	7E313	Direct Clutch Internal Spline Plates
70	7F238	Direct Clutch External Spline Plates
71	388104	Retaining Snap Ring
72	7F235	Return Spring and Retainer
73	7F254	Direct Clutch Piston
74	7F234	Direct Clutch Piston Seal (Inner)
75	7C000	Direct Clutch Piston Seal (Outer)
76	7A153	Ring Gear and Park Gear
77	7F283	Direct Cylinder
78	7F284	Output Shaft Small (2) Steel Seal Rings (Direct Clutch) (5 and 6)
79	7F240	No. 8 Needle Bearing (Direct Clutch Outer)
80	7060	Output Shaft
81	7F273	Output Shaft Large (4) Steel Rings (7, 8, 9 and 10)
82	7D164	Output Shaft Hub
83	97713	Retaining Snap Ring (O.P.S. Hub to O.P.S.)
84	97713	Retaining Snap Ring (O.P.S. Hub to Ring Gear)
85	7E110	Rear Case Bushing
86	7F242	No. 9 Needle Bearing (Rear Case)
87	7005	Case Assy
88	7A247	Neutral Start Switch
89	7034	Vent Cap
90	7A189	Governor Counterweight
91	7C063	Body Assy—Governor
92	7A303	Plug Governor
93	7A304	Sleeve Governor
94	7E242	Screen Assy—Gov. Oil
95	7A302	Spring Gov. Valve
96	7C054	Valve Governor
97	7A300	Body Governor
98	N800273	Bolt (Governor Body to Counterweight)
99	7A305	Clip—(Governor Cover to Governor Body)
100	N800274	Bolt (Governor Cover to Governor Body)
101	7A301	Cover—Governor Vlave Body
102	388104	Retaining Snap Ring (Governor Assy to O.P.S.)
103	7086	Extension Housing Gasket
104	7A034	Extension Housing Bushing
105	7A039	Extension Housing
106	7052	Extension Housing Seal
107	N803747-S100	Bolt (Ext. Hsg. to Case) M6-12.5 x 30 (6 Req'd)
107A	N803521-S100	Stud (Ext. Hsg. to Case) M8 x 1.25 x .54 Hex Shld. Depending on Application (1 Req'd., Hole 6)
108	376649	Pipe Plug—1/8-27 Dry Seal
109	7F201	Overdrive Servo Piston Return Spring
110	7F200	Overdrive Servo Piston
111	SEE NOTE	Overdrive Piston Seal
112	388515	Overdrive Servo Cover Seal Rings
113	7F204	Overdrive Servo Cover
114	388216	Retaining Snap Ring (O/D Servo to Case)
115	7D031	Reverse Servo Piston Return Spring
116	7D030	Reverse Servo Piston (Selective)
117	7D281	Reverse Servo Cover
118	388215-S100	Retaining Snap Ring (Rev. Servo to Case)
125	7F250	2-3 Accumulator Valve Seal (Small)
126	7F251	2-3 Accumulator Valve
127	7F249	2-3 Accumulator Valve Seal (Large)
128	7F285	2-3 Accumulator Valve Return Spring
129	7B264	2-3 Accumulator Retainer
130	7D071	Park Pawl Shaft
131	7D419	Guide Cup (Not Serviced)
132	7D070	Park Pawl Return Spring
133	7F338	Manual Lever
134	7341	Grommet
135	7F337	Throttle Lever Oil Seal
136	N62004-S51	Attaching Nut and Lock Washer—M8 x 1.25
137	7F291	Throttle Lever (Outer)
138	7A441	Park Pawl
139	7A232	Park Pawl Actuating Rod
140	7A115	Manual Lever (Inner)
141	7B210	Roll Pin—1/8 x 0.95 Grooved
142	7E332	Detent Spring
143	N800287-S51	Attaching Nut (Manual LVR)—M14 x 1.5 Hex
144	7F290	Throttle Lever (Inner)
145	7F292	Throttle Torsion Spring
146	7F282	Valve Body Reinforcement Plate
147	7C155	Separator Plate Gasket (Upper)
148	7A008	Separator Plate
149	7D100	Separator Plate Gasket (Lower)
150	7A100	Valve Body (Main Control)
151	7F003	Filter and Grommet Assy—Oil Pan
152	7A191	Oil Pan Gasket
153	7A264	Oil Pan
154	390233-S2	Bolt (Oil Pan to Case)—M8 1.25 x 15 (14 Req'd)
155	7E062	Oil Filter Gasket
156	N605775-S	Bolt (Valve Body to Case) M6 1.0 x 30 (8 Req'd)
157	N606022-S	Bolt (Valve Body to Case) M6 1.0 x 40 (17 Req'd)
158	N605772-S	Bolt (Screen to Valve Body) M6 1.0 x 16 (3 Req'd)
159	353351-S	Ball (Governor Drive)
160	7F277	Spring (Anti Clunk)
161	7F434	Grommet
162	7B498	Oil Seal Assy
163	N804799-S100	Connector Assy 5/16 Tube x 1/4 External Pipe Plug

NOTE: Part number for item No. 111 varies by application. Refer to Master Parts Catalog.

NOTE: Before beginning the transmission overhaul, review the following guidelines. These general rules are provided to emphasize the need for attention to detail and care when servicing an automatic transmission.

If the transmission is being removed for major overhaul, it is important to completely clean all transmission components, including converter, cooler, cooler lines, main control valve body, governor, all clutches and all check balls after any transmission servicing that generates contamination. These contaminants are a major cause for recurring transmission troubles and must be removed from the system before the transmission is put back into service.
The cleaning of debris from the direct clutch check ball is often omitted. This omission can lead to a repeat servicing of the transmission.
Cleaning and flushing procedures for transmission components, including the direct clutch check ball, can be found under Cleaning and Inspection.
Thorough cleaning of the transmission exterior will reduce the possibility that damaging contaminants might enter the subassemblies during disassembly and assembly.
All fasteners must be tightened to the torque indicated in the text. In addition to appearing in the text, the necessary torques can be found under Specifications.
When building up subassemblies, each component part should be lubricated with clean transmission fluid. It is also good practice to lubricate the subassemblies as they are installed in the case.
Needle bearings, thrust washers and seals should be lightly coated with petroleum jelly during subassembly build up or transmission assembly.
Many components and surfaces in the transmission are precision machined. Careful handling during disassembly, cleaning, inspection and assembly can prevent unnecessary damage to machined surfaces.
When building up subassemblies or assembling the transmission, always use new gaskets and seals.
The transmission service area should be kept clean, well organized and supplied with clean lint-free shop cloths.
Whenever a seal is removed from a piston, shaft or servo, note the type of seal and when applicable, the direction of the sealing lip.
