Section 07-01A: Transmission, Automatic, A4LD
1993 Mustang Workshop Manual
SPECIAL SERVICE TOOLS/EQUIPMENT

Special Service Tools/Equipment

Tool Number/Description Illustration
T57L-500-B
Bench Mounted Holding Fixture
TOOL-4201-C
Dial Indicator With Bracketry
TOOL-7000-DD
Rubber Tip for Air Nozzle
TOOL-7000-DE
Air Nozzle Assembly
T74P-77052-A
Extension Housing Seal Replacer (In Kit T74P-7000-A)
T77L-7697-E
Extension Housing Bushing Remover
T77L-7697-F
Extension Housing Bushing Replacer
T80L-7902-A
Converter End Play Checking Tool
T74P-77000-A
A4LD Service Kit
T74P-77001-A
Transmission Mounting Adapters
T74P-77103-X
Front Pump Alignment Set (In Kit T74P-7000-A)
T74P-77247-A
Neutral Start Switch Socket (In Kit T74P-7000-A)
T87L-77248-AH
Seal Replacer (In Kit T74P-7000-A)
T87L-77248-BH
Seal Staking Tool
T74P-77404-A
Lip Seal Protector (In Kit T74P-7000-A)
T74P-77548-A
Lip Seal Protector (In Kit T74P-7000-A)
T74P-77548-B
Lip Seal Protector (In Kit T74P-7000-A)
T74P-77498-A
Shift Lever Seal Replacer (In Kit T74P-7000-A)
T65L-77515-A
Clutch Spring Compressor
T77L-7902-B
Converter One-Way Clutch Torquing Tool
T83L-50EEC-IV
Breakout Box
T93T-77003-AH
Gauge Bar
T74P-77190-A
Servo Rod Selecting Tool
T86L-7006-A
A4LD Transmission Test Plate
T71P-77370-A
Band Adjustment Torque Wrench Set



ROTUNDA EQUIPMENT
Model Description
014-00028 Torque Converter Cleaner
007-00085 Automatic Transmission Tester
021-00014 Vacuum Tester
021-00054 Torque Converter Leak Detector
059-00008 Vacuum and Pressure Tester
105-00053 Digital Volt-Ohmmeter

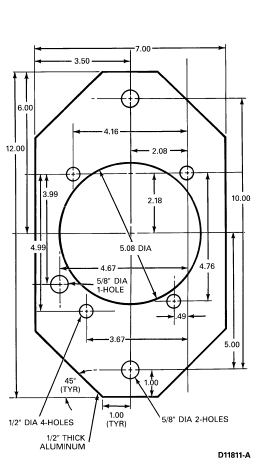

A4LD Adapter Plate for Tool — T57L-500-B
