Fluid Control Valve Assembly

Removal

1. Remove brake fluid from reservoir.

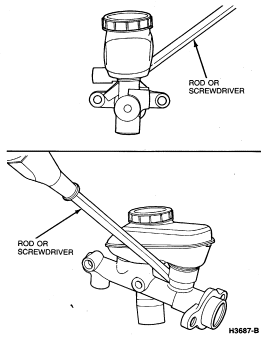

2. Remove reservoir primary port (only) with a rod or long screwdriver.





3. Rotate reservoir out of way and remove sealing grommet from casting.

   NOTE: The fluid control valve assembly is serviced as an assembly only. Do not attempt to service this unit.

    CAUTION: Do not operate brake until reservoir is installed and filled, or primary brake system will have to be bled.

4. With a 12mm socket, remove fluid control valve. Inspect for contamination under seal or in center orifice.

Installation

1. Install a new fluid control valve. Tighten to 11-13 Nm (8-9 lb-ft).

2. Lubricate new grommet with brake fluid and install it in primary port.

3. Install reservoir in new grommet.

4. Refill reservoir.
