Section 03-13: Evaporative Emissions | 1993 Mustang Workshop Manual |
The tubes and hoses transmit vapor from the vapor valve assembly to the canister system.
Carbon Canister
Fuel vapor emitted through the fuel vapor valve is stored in a
carbon-filled canister.
Canisters, Typical
2.3L Canister Venting System

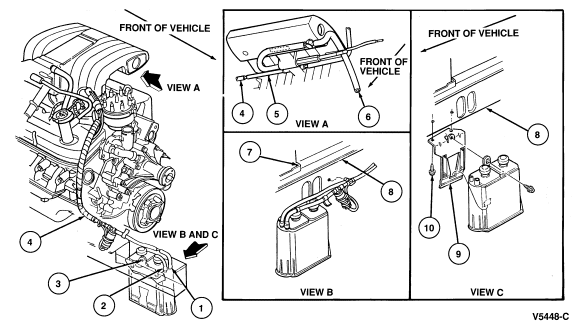

5.0L Canister Venting System
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Engine Evaporator Hose to Large Nipple |
| 2 | — | Tank Evaporator Hose to Small Nipple |
| 3 | 40920-S2 | Screw |
| 4 | 9C987 | Fuel Vapor Return Hose and Valve Assy |
| 5 | 9E455 | EGR Vacuum Control Connector |
| 6 | 6A886 | Crankcase Hose to PCV |
| 7 | — | Battery Tray |
| 8 | — | Sidemember |
| 9 | 9D665 | Fuel Vapor Canister Bracket |
| 10 | 381877-S2 | Screw (2 Req'd) |
