Section 03-12: Air Intake System
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Air Filter Element—Replacement

Refer to Section 00-03 for the Emissions Systems Maintenance Schedule for frequency of filter inspection and/or replacement.



Removal

  1. Disconnect all hoses and tubes. Remove screws on 2.3L engines (clamps on 5.0L engines) as necessary to remove the air cleaner lid.
  1. Remove air filter element.


Inspection

Visually inspect the element and the air cleaner cover and body for signs of dust or dirt leaking through holes in the filter media or past the end seals. Place a light on the inside (clean side) of the filter and look through the filter at the light. Even the smallest hole is cause for replacement.

Also check the element for deformed seals or for charred (burned) or brittle spots that could fail under engine operation and cause a hole. Discoloration only, is not a cause for replacement.



Installation

  1. Wipe all inside surfaces of the air cleaner body and cover. Install the air filter element.
  1. Position air cleaner cover on the air cleaner body.
  1. Install clamps, if so equipped, and tighten to 1.4-2.5 Nm (13-22 lb-in).
  1. On 2.3L MFI engines, connect the vacuum hoses that were disconnected during removal of the air cleaner lid.

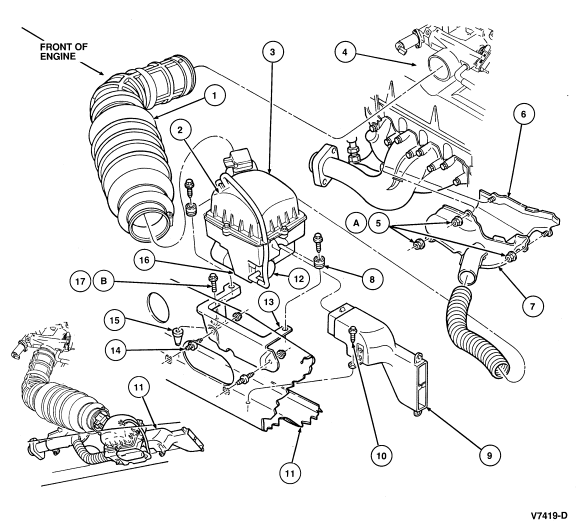

2.3L MFI





Item Part Number Description
1 9F805 Resonator and Tube Assy
2 — To Vacuum System
3 9600 Air Cleaner Assy 2.3L OHC
4 9E926 Throttle Body Assy
5A N621905-S2 Nut and Washer Assy (3 Req'd)
6 9B957 Inner Shroud
7 9A676 Outer Shroud
8 17C431 Grommet
9 9C675 Air Cleaner Tube Assy
10 N611062-S2 Screw and Washer Assy (3 Req'd)
11 — RH Fender Apron
12 9D612 Vacuum Motor
13 9647 Bracket
14 9P686 Insulator Air Cleaner Support (2 Req'd)
15 9697 Grommet
16 9600 Air Cleaner Assy 2.3L OHC
17B N605744-S2 Screw and Washer Assy (2 Req'd)
A Tighten to 5.5-7 Nm (49-61 Lb-In)
B Tighten to 8-11.5 Nm (71-97 Lb-In)

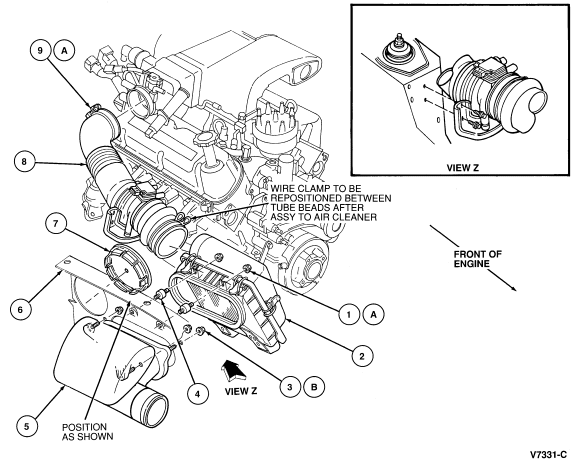

5.0L MFI





Item Part Number Description
1A N621907-S8 Nut and Washer Assy (2 Req'd)
2 9600 Air Cleaner Assy 5.0L EFI
3B N621906-S2 Nut and Washer Assy (3 Req'd)
4 9P686 Insulator Air Cleaner Support (2 Req'd)
5 9F763 Resonator Assy
6 — RH Fender Apron
7 9D693 Plug
8 9F842 Tube, Bracket and Sensor Assy
9A 9C632 Clamp (2 Req'd)
A Tighten to 2.8-4 Nm (25-35 Lb-In)
B Tighten to 4-6.8 Nm (35-60 Lb-In)
