Distributor Rotor

Removal

With distributor cap removed, pull rotor upward to remove it from distributor shaft and armature.

Cleaning and Inspection

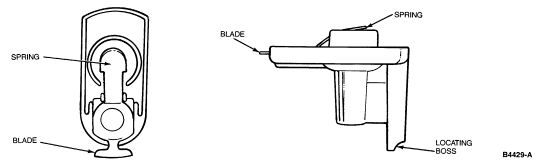

Wash rotor with soap and water. Dry with compressed air. Inspect and replace rotor if cracks, carbon tracks, burns or damage to blade or spring are observed.

Installation

Align locating boss on rotor with hole on armature. Fully seat rotor on distributor shaft. Re-install distributor cap.
