Air Intake Manifold

The air intake manifold is a two-piece (upper and lower intake manifold) aluminum casting. Runner lengths are tuned to optimize engine torque and power output. The manifold provides mounting flanges for the air throttle body assembly, fuel supply manifold and accelerator control bracketry and the exhaust gas recirculation (EGR) valve 9D475. Vacuum taps are provided to support various engine accessories. Pockets for the fuel injectors are machined to prevent both air and fuel leakage. The pockets in which the injectors are mounted are placed to direct the injector fuel spray immediately in front of each engine intake valve.

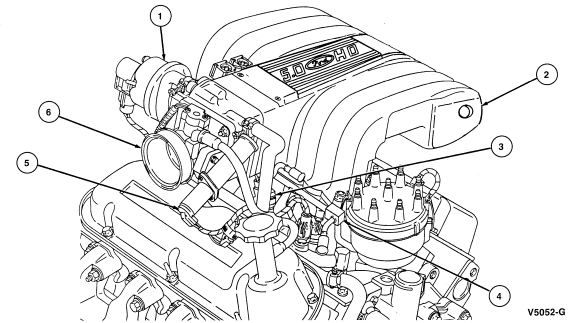

Mustang

Item	Part Number	Description
1	9F483	EGR Valve
2	9425	Upper Intake Manifold
3	9F593	Fuel Injector
4	9F792	Fuel Rail
5	9F715	Idle Air Control (IAC) Valve
6	9E926	Throttle Body (TB)

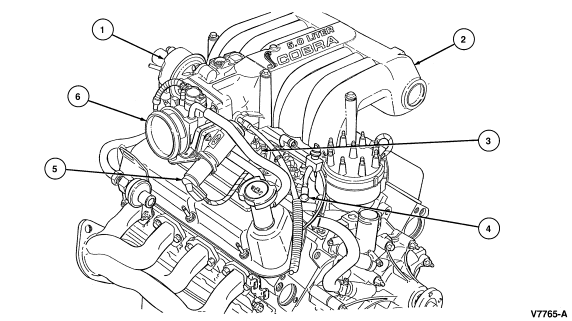

Cobra

Item	Part Number	Description
1	9F483	EGR Valve
2	9425	Upper Intake Manifold
3	9F593	Fuel Injector
4	9F792	Fuel Rail
5	9F715	Idle Air Control Valve (IAC)
6	9E927	Throttle Body (TB)

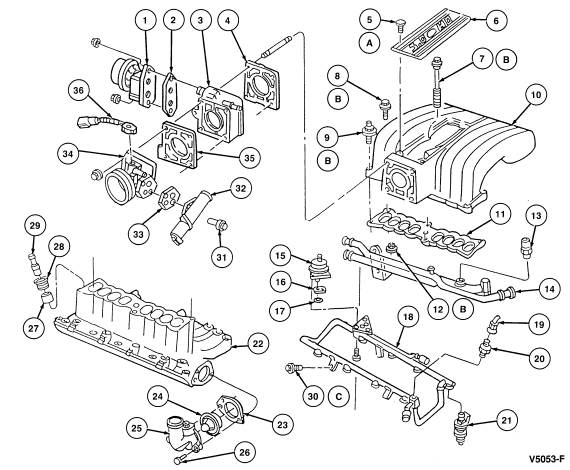

Mustang

Item	Part Number	Description
1	9F483	EGR Valve Assy
2	9D476	EGR Valve Gasket
3	9H474	EGR Spacer
4	9E464	EGR Spacer Gasket
5A	390652	Screw 8-32 x .71 (4 Req'd)
6	9E434	Upper Manifold Cover
7B	390653	Bolt 5/16-18 x 6.07 (2 Req'd)
8B	390358	Bolt 5/16-18 x 1.62 (2 Req'd)
9B	390589	Stud 5/16-18 x 1.62 (2 Req'd)
10	9425	Upper Intake Manifold
11	9H486	Upper to Lower Manifold Gasket
12B	33770	5/16-18 Nut and Washer
13	12A648	Engine Coolant Temperature Sensor
14	9D424	Heater Tube Assy
15	9C968	Fuel Pressure Regulator
16	9C977	Fuel Pressure Regulator Gasket
17	87006-S96	O-Ring Seal
18	9F792	Fuel Rail Assy
19	9H323	Schrader Valve Cap
20	9H321	Schrader Valve
21	9F593	Fuel Injector
22	9K461	Lower Intake Manifold
23	8255	Thermostat Housing Gasket
24	8575	Thermostat
25	8592	Engine Coolant Output Connector
26	56132	Bolt 5/16-18 x 3.50 inch (2 Req'd)
27	6A631	Crankcase Vent Element
28	6K780	PCV Grommet
29	6A666	PCV Valve Assy
30C	56703	Bolt 1/4-20 x .86 (4 Req'd)
31	N605774-S100	Screw (2 Req'd)
32	9F715	Idle Air Control Valve
33	9F670	Idle Air Control Gasket
34	9E926	Throttle Body Assy
35	9E933	Throttle Body Gasket
36	9B989	Throttle Position Sensor
A		Tighten to 2.5-4 Nm (23-33 Lb-In)
B		Tighten to 16-24 Nm (12-18 Lb-Ft)
C		Tighten to 8.5-12 Nm (75-105 Lb-In)

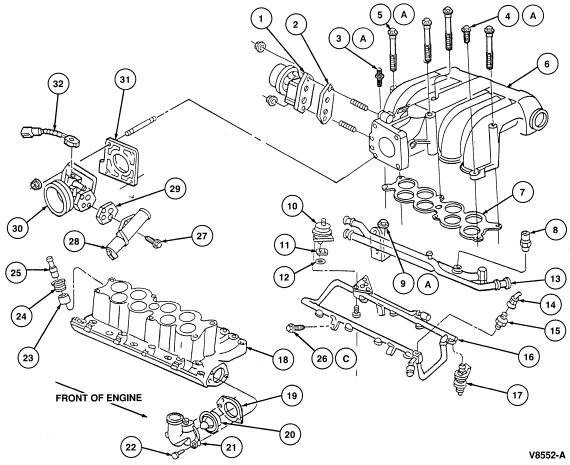

Cobra

Item	Part Number	Description
1	9F483	EGR Valve Assy
2	9D476	EGR Valve Gasket
3A	390589	Stud 5/16-18 x 1.62 (1 Req'd)
4A	390358	Bolt 5/16-18 x 1.62 (1 Req'd)
5A	390653	Bolt 5/16-18 x 6.07 (4 Req'd)
6	9425	Upper Intake Manifold
7	9H486	Upper to Lower Intake Manifold
8	12A648	Engine Coolant Temperature Sensor
9A	3370	5/16-18 Nut and Washer
10	9C968	Fuel Pressure Regulator
11	9C977	Fuel Pressure Regulator Gasket
12	87006-S96	O-Ring Seal
13	9D424	Heater Tube Assy
14	9H323	Schrader Valve Assy
15	9H321	Schrader Valve
16	9F792	Fuel Rail Assy
17	9F593	Fuel Injector
18	9K461	Lower Intake Manifold
19	8255	Thermostat Housing Gasket
20	8575	Thermostat
21	8592	Engine Coolant Outlet Connector Assy
22	56132	Bolt 5/16-18 x 3.50 inch (2 Req'd)
23	6A631	Crankcase Vent Element
24	6K780	PCV Grommet
25	6A666	PCV Valve Assy
26C	56703	Bolt 1/4-20 x .86 inch (4 Req'd)
27	N605774-S100	Screw (2 Req'd)
28	9F715	Idle Air Control Valve
29	9F670	Idle Air Control Gasket
30	9E926	Throttle Body Assy
31	9E933	Throttle Body Gasket
32	9B989	Throttle Position Sensor
A		Tighten to 16-24 Nm (12-18 Lb-Ft)
C		Tighten to 8.5-12 Nm (75-105 Lb-In)
