Engine, 5.0L HO and 5.0L Cobra

 WARNING: TO AVOID THE POSSIBILITY OF PERSONAL INJURY OR DAMAGE TO THE VEHICLE, DO NOT OPERATE THE ENGINE WITH THE HOOD OPEN UNTIL THE FAN HAS BEEN FIRST EXAMINED FOR POSSIBLE CRACKS AND SEPARATION.

When installing nuts or bolts that must be tightened, oil the threads with lightweight engine oil. Do not oil threads that require oil resistant or water resistant sealer.

Refer to Section 03-00 for Cleaning and Inspection and engine test procedures.

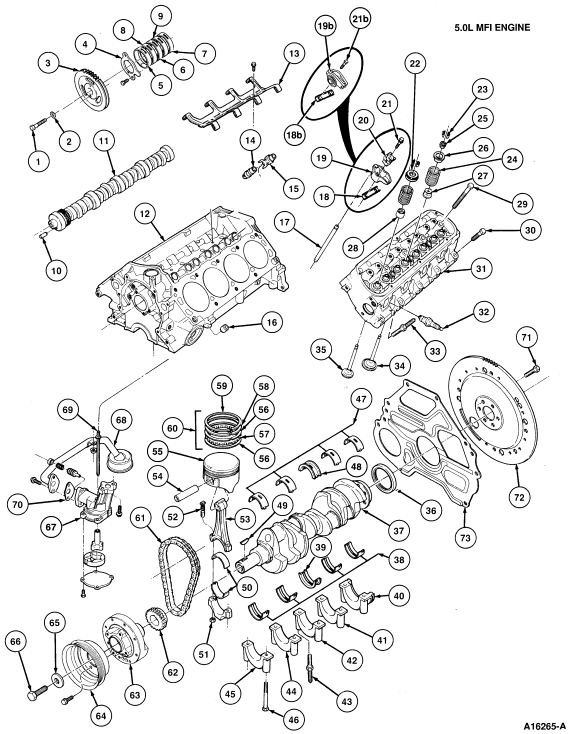

Item	Part Number	Description
1	43002	Bolt 3/8-16 x 1.50
2	6278	Camshaft Sprocket Washer
3	6256	Camshaft Sprocket
4	6269	Camshaft Thrust Plate
5	6261	Camshaft Bearing Front
6	6262	Camshaft Bearing Center
7	6263	Camshaft Bearing Rear
8	6267	Camshaft Bearing Front Intermediate
9	6270	Camshaft Bearing Rear Intermediate
10	391269	Pin 5/16 x 1.12 Dowel
11	6250	Camshaft
12	6010	Cylinder Block
13	6C515	Valve Tappet Guide Plate Retainer
14	6500	Roller Tappet
15	6K512	Valve Tappet Guide Plate
16	6A008	Cylinder Head to Block Dowel
17	6565	Push Rod
18	6A588	Rocker Arm Fulcrum Guide
18B	6A585	Rocker Arm Pedestal Assy (Cobra Only)
19	6564	Rocker Arm
19B	6C526	Roller Rocker Arm Assy (Cobra Only)
20	6A528	Fulcrum
21	390385	Screw and Washer 5/16-18 x 1.35
21B	391423	Screw and Washer 5/16-18 x 1.35 (Cobra Only)
22	6A516	Exhaust Valve Rotator
23	6518	Valve Spring Retainer Keys
24	6513	Valve Spring
25	6517	Valve Spring Intake Sleeve
26	6514	Valve Spring Intake Retainer
27	6A517	Intake Valve Stem Seal
28	6A517	Exhaust Valve Stem Seal
29	391414	Bolt 7/16-14 x 4.11 (10 Req'd)
30	386565	Bolt 7/16-14 x 2.49 (9 Req'd)
31	6049	Cylinder Head
32	12405	Spark Plug
33	391415	Stud 3/8-16-7/16-14 x 3.93 (RH Head Only)
34	6507	Intake Valve
35	6505	Exhaust Valve
36	6701	Rear Seal
37	6300	Crankshaft
38	6A338	Crankshaft Lower Bearing
39	6A339	Crankshaft Main Lower Thrust Bearing
40	6325	Main Bearing Rear Cap
41	6327	Main Bearing Rear Intermediate Cap
42	6330	Main Bearing Center Cap
43	386562	Stud 3/8-16-7/16-14 x 4.09
44	6334	Main Bearing Front Intermediate Cap
45	6329	Main Bearing Front Cap
46	391288	Bolt 7/16-14 x 3.18 (9 Req'd)
47	6333	Crankshaft Main Upper Bearing
48	6337	Crankshaft Main Upper Thrust Bearing
49	388907	Crankshaft Key
50	6211	Connecting Rod Bearing
51	6212	Connecting Rod Nut
52	6214	Connecting Rod Bolt
53	6200	Connecting Rod Assembly
54	6135	Piston Wrist Pin
55	6110	Piston
56	6159	Oil Control (Ring) Segment
57	6161	Oil Control Spacer
58	6152	Lower Compression Ring
59	6150	Upper Compression Ring
60	6148	Ring Set
61	6268	Timing Chain
62	6306	Crankshaft Sprocket
63	6316	Crankshaft Damper
64	6312	Crankshaft Pulley
65	6378	Damper Washer
66	388813	Bolt 5/8-18
67	6600	Oil Pump Assy
68	6622	Oil Pump Screen and Cover
69	6A618	Oil Pump Shaft Assy
70	6625	Oil Pump Gasket
71	391201	Bolt 7/16-20
72	6375	Flywheel Assy
73	6A373	Rear Engine Cover
