Engine, 5.0L HO and 5.0L Cobra

The 5.0L (302 CID) high output (HO) engine is optional for Mustang. The HO version is available on Mustang with automatic overdrive (AOD) transmission and Mustang with manual transmission (T50D).

The 5.0L (302 CID) Cobra engine is standard for the 1993 Cobra Mustang. The 1993 Cobra Mustang is only available with manual transmission (T5OD).

Typical Lubrication And Cooling Systems


5.0L Engine

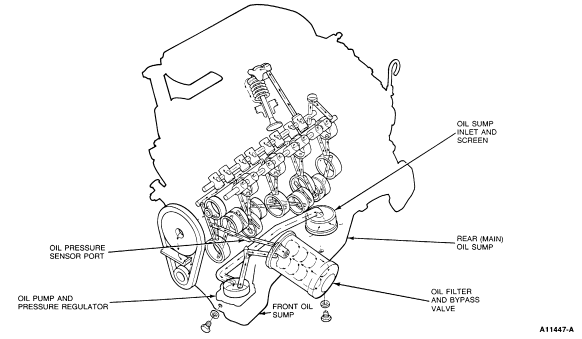

Lubrication Flow






Coolant Flow
