CAUTION: Do not oil threads that require oil resistant or water resistant sealer.

When installing nuts or bolts, oil the threads with light-weight engine oil.

Oil Filter

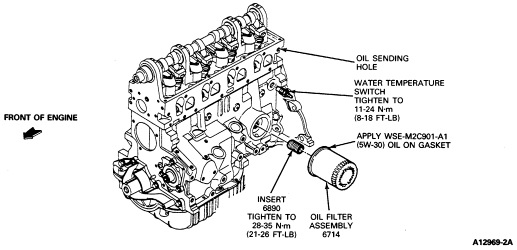

Installation of the oil filter, oil pressure sender, water temperature sender and the fuel pump is shown in the illustration.
