CAUTION: Do not oil threads that require oil resistant or water resistant sealer.

When installing nuts or bolts, oil the threads with light-weight engine oil.

Main Bearings

Selective fit main bearings are used in this engine. No. 3 journal is the thrust bearing.

Before main bearing installation, the crankshaft journals must be cleaned and inspected. Refer to Section 03-00.

Check crankshaft end play. Refer to Section 03-00.

For main bearing replacement, refer to Section 03-00.

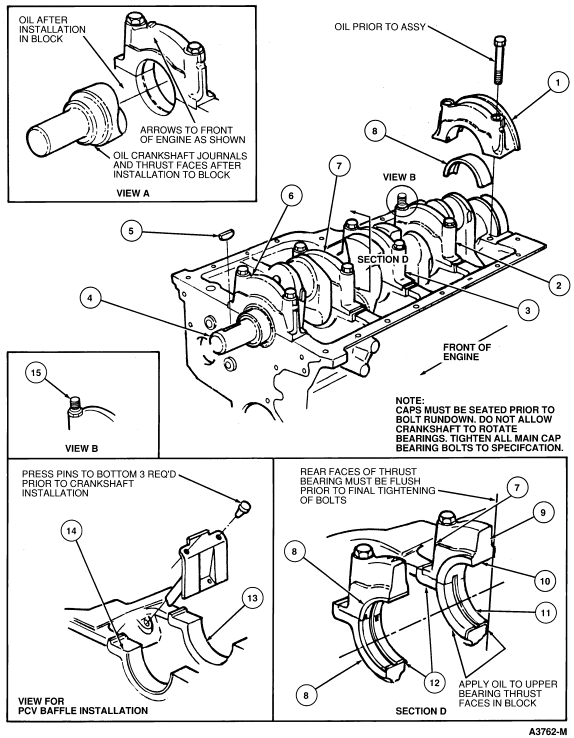

Item	Part Number	Description
1	6325	Rear Cap
2	6327	Cap Rear Intermediate
3	6330	Center Cap
4	6303	Crankshaft
5	6B316	Key
6	6329	Front Cap
7	6334	Front Cap Intermediate
8	6333	Bearing
9	6A339	No. 3 Journal Thrust Bearing
10	6A338	Lower Bearing
11	6337	Upper Thrust Bearing
12	6010	Block
13	—	Journal No. 4
14	—	Journal No. 3
15	—	Stud M12-M10X109 One Req'd for Oil Pickup Tube
