Bumper, Rear

Mustang, Mustang GT and Mustang Cobra have bumper cover assemblies fabricated from a soft urethane plastic that are painted with elastomeric enamel. The cover assembly for the Mustang completely covers the rear bumper reinforcement.

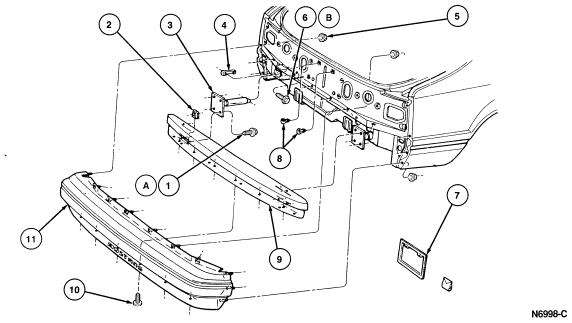

Mustang, 2.3L

Item	Part Number	Description
1A	57049-S54	Bolt and Washer Assy (3 Req'd)
2	45265-S558	U-Nut (3 Req'd Each Side)
3	17D809	Isolator and Bracket Assy (1 Req'd Each Side)
4	388612	Nut and Retainer Assy
5	45273-S36	Nut with Sealer (3 Req'd Each Side)
6B	56789-S2	Bolt (1 Req'd Each Side)
7	17A394	License Plate Frame Kit
8	387089-S100	Nut Insert (2 Req'd)
9	17775	Rear Bumper Assy
10	389443-S	Push Pin
11	—	Rear Bumper Cover Assy
A		Tighten to 33-51 Nm (25-38 Lb-Ft)
B		Tighten to 81-126 Nm (60-93 Lb-Ft)

Removal

NOTE: Push pins will be damaged during removal and new pins will be required for installation.

1. Remove six push pins retaining cover to bottom of bumper reinforcement.

2. Remove cover assembly from bumper.

3. Remove all nuts retaining cover to body.

4. Remove six bolts retaining bumper to isolators and remove bumper from vehicle.

    CAUTION: Never apply heat to the bumper energy absorbers. Heat could cause the material inside the absorbers to expand and flow out of the absorbers or crack the metal housing. Always remove the absorbers before making body frame service near them.

Installation

1. Position bumper assembly to isolators and install retaining bolts.

2. Tighten the isolator-to-reinforcement bolts to 19-27 Nm (14-20 lb-ft).

3. Install bumper cover assembly.

4. Install six new push pins retaining bumper cover to bumper.
