Washer Nozzle, Fluidic

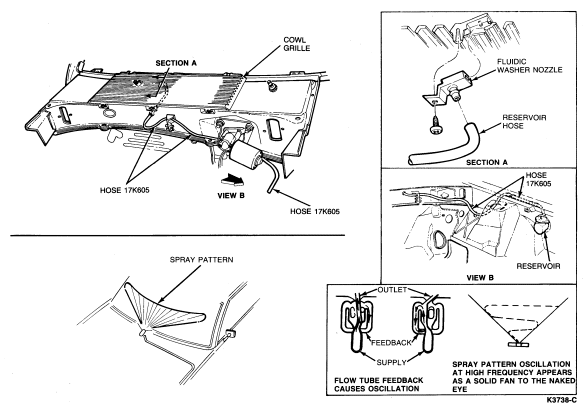

A single nozzle is mounted in the cowl top grille near the centerline of the windshield.

Removal

1. Remove the RH wiper arm assembly.

2. Remove the screws retaining the grille to the cowl top. Raise the grille and disconnect the hose.

3. Remove nozzle retaining screw and remove nozzle.

Installation

1. Position nozzle in the grille and install retaining screw. Connect hose and reposition grille in the cowl. Install grille retaining screws.

2. Install the wiper arm assemblies with the wiper motor in park position. Set the wiper blade to Dimension X as outlined.

3. Test the system.
