Section 01-14: Handles, Locks, Latches and Mechanisms
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

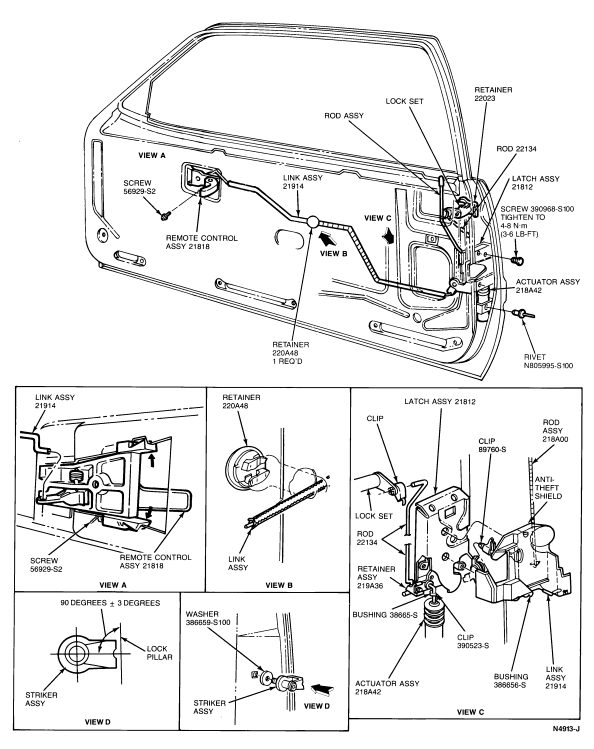

Door Lock Actuator Motor, Electric

Tools Required:



Removal

  1. Remove door trim panel and watershield. Refer to Section 01-05.
  1. Remove pop-rivet retaining actuator motor to door.
  1. Disconnect wiring at connector.
  1. Disconnect actuator motor link from door latch.
  1. Remove actuator motor.





Installation

  1. Connect wiring at connectors.
  1. Connect actuator motor link to door latch.
  1. Install door lock actuator motor to door with pop-rivet using Heavy Duty Riveter D80L-23200-A or equivalent.

     CAUTION: Make certain that the actuator boot is not twisted during installation. The pop-rivet must be installed with bracket base tight to the inner panel.

  1. Install watershield and door trim panel. Refer to Section 01-05.
