Section 01-12: Instrument Panel and Console
1993 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY

Instrument Panel and Console

NOTE: Refer to the following illustrations when disassembling or assembling the instrument panel.



Instrument Panel Exploded View—Front

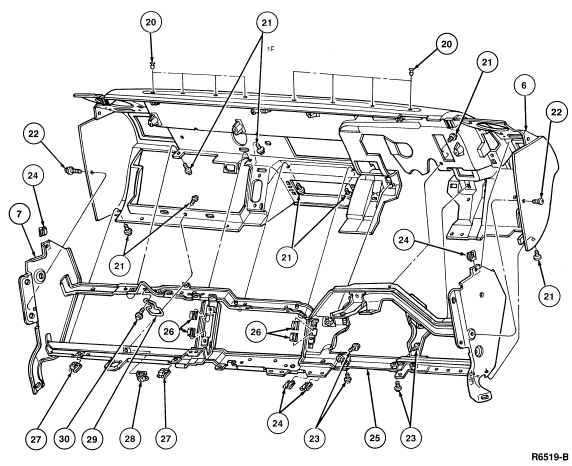

Instrument Panel Exploded View—Rear

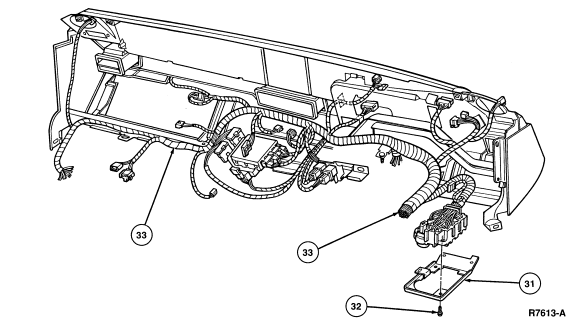

Harness Installation





Item Part Number Description
1 N803887-S32 Nut (2 Req'd) — M4.2 x 1.41 U P/T
2 N803887-S32 Nut (1 Req'd) — M4.2 x 1.41 U P/T
3 N804359-S Bumper — 1.0 x 6.4 Dia. Cyl. HO.
4 N621901-S36 Nut and Washer Assy — M4 x 0.7 Hex Lock
5 16720 Plate Model ID
6 4320 Panel — Instrument
7 — Instrument Panel Support Bracket
8 N803685-S11 Nut Panel Push On
9 19893 Reg. Assy — A/C I/P RH
10 385754-S36B Screw — M4.2 x 2.12 x 12.7 Pan Hd.
11 — Screw
12 6024 Door Assy — G/C
13 N803876-S36B Screw — M4.2 x 1.41 x 19 Hex Flange Tap
14 6024 Latch Assy — G/C Dr.
15 19C681 Reg. Assy — A/C I/P Center
16 6104282 Pad and Ret. Assy — I/P
17 N803685-S11 Nut — Panel Push On
18 N803685-S11 Nut — Panel Push On
19 19C696 Reg. Assy — A/C I/P LH
20 N804359-S Bumper — 1.0 x 6.4 Dia. Cyl. Hd.
21 N804306-S36B Screw — M4.2 x 1.41 x .6 Hex Flange Tap
22 56928-S36B Screw and Washer Assy — M4.2 x 1.41 x 12.7 Rd. Wshr. Hd.
23 N806486-S36B Screw — Screw M6.0 x 1.0 x 14 Hex Flange Tap
24 N802539-S100 Nut — M4.2 x 1.41
U P/T
25 46B64 Reinf. Assy — I/P Center Lwr
26 N802539-S100 Nut — M4.2 x 1.41
U P/T
27 N802650-S100 Nut — M4.2 x 1.41
U P/T Hooded
28 N802650-S100 Nut — M4.2 x 1.41
U P/T Hooded
29 6064 Catch — G/C Dr. Latch
30 N803273-S2 Screw and Washer Assy — M4 x 0.7 x 14 Hex Hd.
31 14A254 Brkt. — Fuse Junction Panel Mntg.
32 N803675-S36B Screw — M4.8 x 1.59 x 16 Flange Tap
33 14401 Wire Assy — Main
34 N806270 Nut — MS Sleeve Push On
