Section 01-11: Glass, Frames and Mechanisms
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

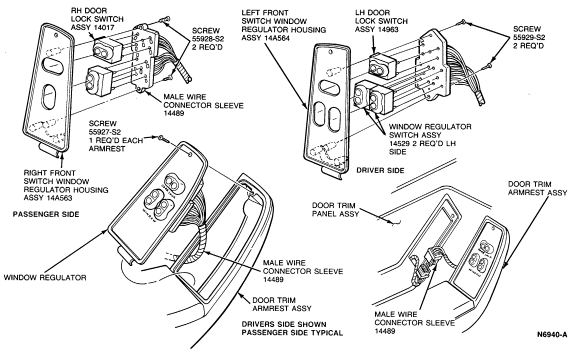

Window Switch



Removal and Installation

  1. Remove switch housing retaining screw and rotate housing up and out of armrest.
  1. Remove two connector retaining screws from bottom of switch housing.
  1. The switch is held in place by electrical contact pins. To remove switch, carefully pry switch from connector with a small screwdriver.

    NOTE: The switch is keyed to connector and can only be installed one way.

  1. To install, reverse Removal procedure.
