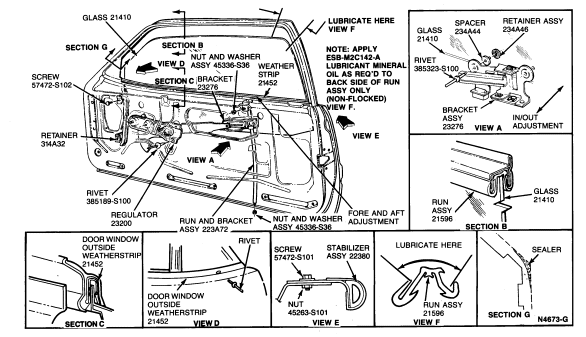

Remove door trim panel and watershield. Refer to Section 01-05.
Support the glass in the full-up position.
Remove the glass-to-bracket attaching rivets. Refer to Door Glass, Removal
as outlined.
Remove upper and lower retaining hardware from glass run.
Remove the regulator arm slide from the glass bracket C-channel and remove
the run and bracket assembly from the door.
Installation
Install the glass bracket assembly onto the glass run and position them in
the door.
Loosely install the upper and lower run retaining hardware.
Insert regulator slide into glass bracket C-channel.
Remove the glass prop and position the glass bracket to the glass. Install
the retaining rivets or bolts. Refer to Door Glass, Installation as outlined.
Adjust glass as outlined.
Cycle the glass to check for proper operation.
Install the door trim panel and watershield. Refer to Section 01-05.
