The instrument cluster includes a speedometer with trip odometer, tachometer, magnetic fuel, temperature, oil pressure and voltmeter gauges. It also contains the following warning indicators: high beam, safety belt, BRAKE, charging system, turn signals, CHECK OIL, CHECK ENGINE, AIR BAG and LOW COOLANT.
NOTE: An instrument voltage regulator (IVR) is not required for this system.

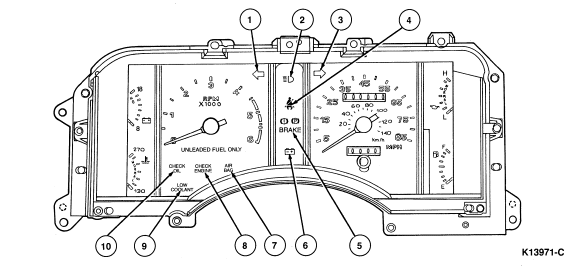

| Item | Part Number | Description |
|---|---|---|
| 1 | — | LH Turn Signal Indicator |
| 2 | — | High Beam Indicator |
| 3 | — | RH Turn Signal Indicator |
| 4 | — | Safety Belt Indicator |
| 5 | — | Brake System Indicator |
| 6 | — | Charging System Indicator |
| 7 | — | Air Bag Readiness Indicator |
| 8 | — | Check Engine/Malfunction |
| 9 | — | Low Coolant Indicator |
| 10 | — | Low Oil Pressure Indicator |
