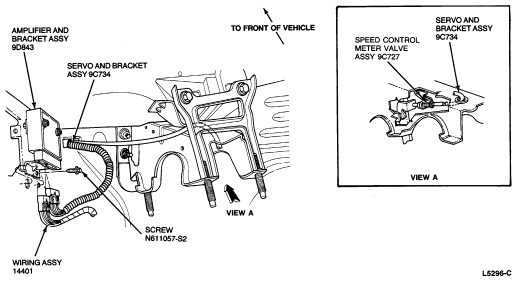

Amplifier Assembly

The amplifier is located inside the passenger compartment, on the LH side cowl panel in the area of the foot brake.

Removal and Installation

1. Remove screws which retain amplifier assembly to mounting bracket.

2. Disconnect two electrical connectors at amplifier.

3. To install, reverse Removal procedure.
