Section 10-03: Speed Control System
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

VSS



Removal

  1. Raise vehicle on a hoist. Refer to Section 00-02. Remove bolt retaining VSS mounting clip to transmission.
  1. Remove VSS and driven gear from transmission.
  1. Disconnect electrical connector and speedometer cable from VSS.
  1. Disconnect speedometer cable by pulling it out of VSS.

    NOTE: Do not attempt to remove spring retainer clip with speedometer cable in VSS.

  1. Remove driven gear retainer. Remove driven gear from VSS.





Installation

  1. Position driven gear to VSS. Install gear retainer.
  1. Connect electrical connector.

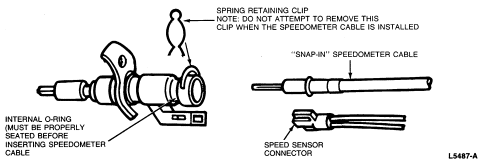

  1. Ensure internal O-ring is properly seated in VSS housing. Snap speedometer cable into VSS housing.
  1. Insert VSS assembly into transmission housing. Install retaining bolt.
  1. Lower vehicle.
