Section 10-03: Speed Control System | 1993 Mustang Workshop Manual |
The speed control system consists of the operator controls, a servo
(throttle actuator) assembly, a vehicle speed sensor (VSS) 9E731, a clutch
switch (manual transmission only), a vacuum dump valve, an amplifier assembly,
a horn relay and the necessary wires and vacuum hoses. The amplifier assembly
is located under the instrument panel. The servo assembly is mounted on the LH
hinge pillar and is connected to the throttle linkage with an actuator cable.
The VSS is located on the transmission.

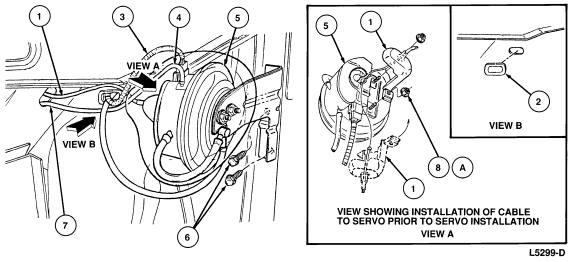

| Item | Part Number | Description |
|---|---|---|
| 1 | 9A825 | Speed Control Actuator Assy |
| 2 | 14603 | Grommet — (Without Speed Control) |
| 3 | — | White Stripe Assy |
| 4 | 9F774 | Boot |
| 5 | 9C734 | Speed Control Servo and Bracket Assy |
| 6 | N611057-S2 | Screw |
| 7 | — | Brown Stripe Hose (Engine Vacuum) |
| 8A | N620480-S2 | Nut (2 Req'd) |
| A | Tighten to 5-7 Nm (45-61 Lb-In) |
