Accelerator Pedal and Linkage

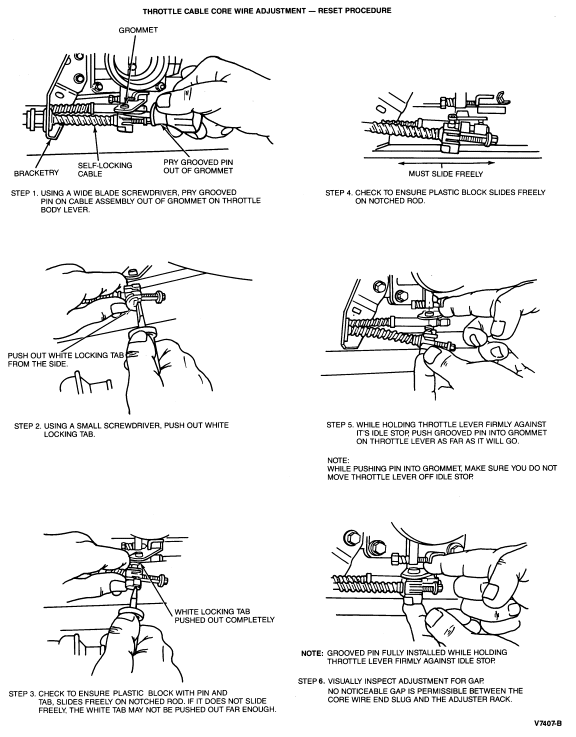

Adjustment instructions and illustrations for the AOD, A4LD and T5OD transmissions are shown in the following illustrations.

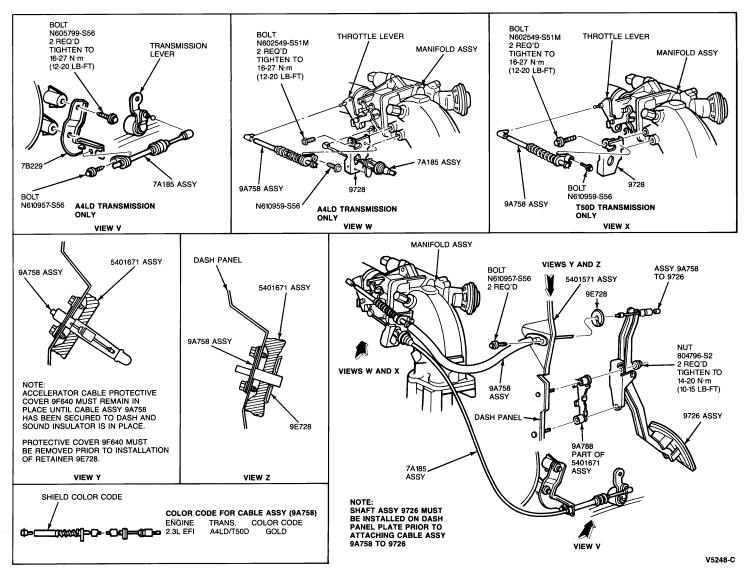

2.3L Engine

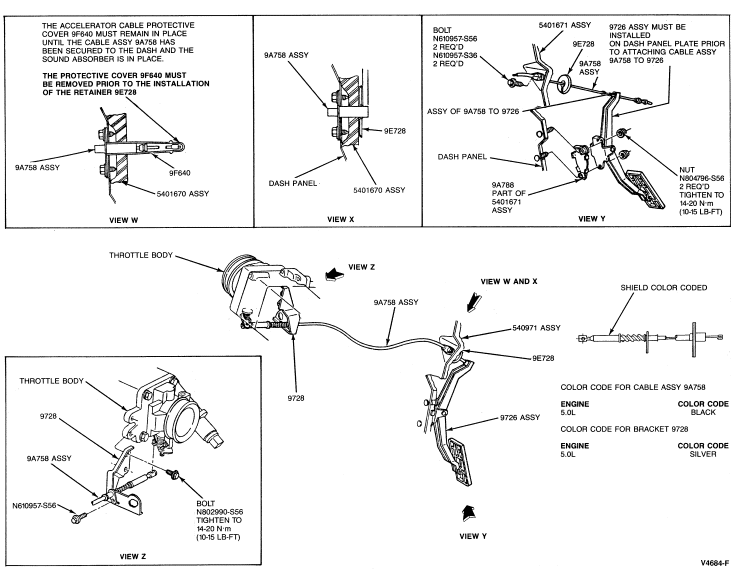

5.0L Engine, T5OD

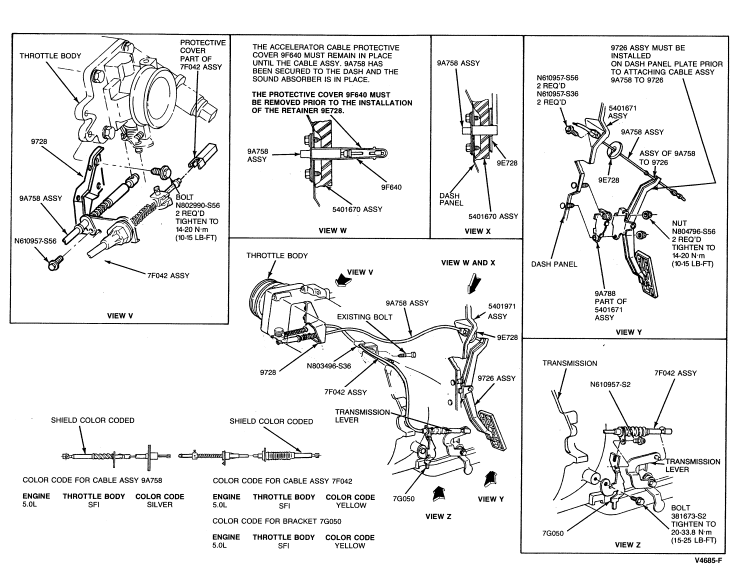

5.0L Engine, AOD
