Clutch Pedal Assembly

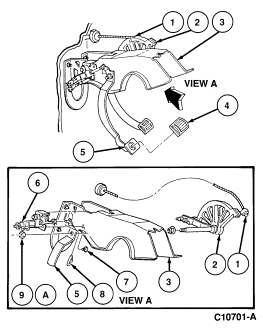

Refer to the following illustration while performing the Removal and Installation procedure for the Clutch Pedal Assembly.

Item	Part Number	Description
1	7K553	Cable Assy
2	7C519	Quadrant Assy
3	2501508	Brake Pedal Support
4	2457	Clutch Pedal Pad
5	7519	Clutch Pedal
6	11A156	Switch
7	42358	Screw
8	N803419-S2	Hairpin Clip
9A	N620469-S2	Nut
A		Tighten to 48-72 Nm (36-53 Lb-Ft)

Removal

1. Remove starter/clutch interlock switch as outlined.

2. Remove clutch pedal retaining nut.

3. Pull clutch pedal off the clutch pedal shaft.

Installation

1. Align the square hole of the clutch pedal with the clutch pedal shaft and push the clutch pedal on.

2. Install the clutch pedal retaining nut and tighten to 48-72 Nm (36-53 lb-ft).

3. Install starter/clutch interlock switch as outlined.
