Clutch Control System, Self-Adjusting

The clutch control system is self-adjusting and pedal motion is transmitted by cable to the clutch release lever.

NOTE: After proper installation of the cable, adjustment is completed by pulling the clutch pedal to its upmost position.

With the pedal in the upmost position, the pawl is free of the quadrant and the quadrant position is governed by the position of the clutch release fingers, the quadrant being free to rotate independent of the pedal. The adjuster load spring force ensures contact between the release bearing and the fingers. As the disc facing wears, the fingers are gradually moved away from the flywheel and this movement is translated to the quadrant, adjusting the quadrant position relative to the pedal, when the pawl is free of the quadrant.

During normal running position, the pawl is engaged with the quadrant, locking it to the pedal. For the rest of the pedal travel, the system works as a conventional system; the pedal motion being transmitted to the release fingers. The quadrant remains locked to the pedal during pedal movement. Since the release bearing in this system is constant-running, transmission neutral rollover noise can be detected as such only by disengaging the release bearing from the clutch release fingers.

NOTE: Lift clutch pedal to the upmost position when connecting or disconnecting the clutch cable.

This is best accomplished by disconnecting the cable from the release lever and moving the lever away from the cable. If neutral noise is evident under this condition, it is coming from the transmission.

Noise associated with the release bearing/clutch system will be evident during all or some portion of pedal travel.

The clutch is a Belleville spring-type pressure plate and a multi-stage dampered disc using a self-centering, constant-running release bearing.

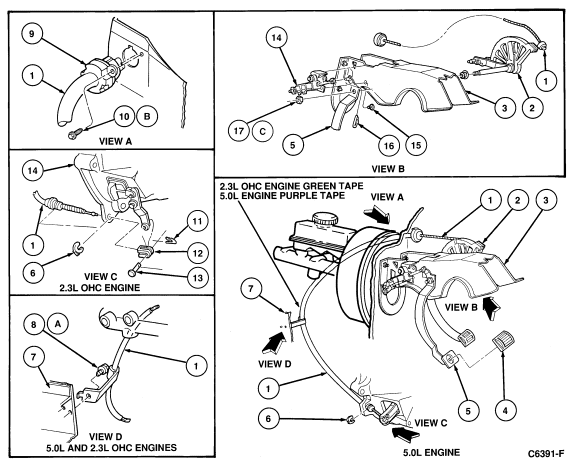

Item	Part Number	Description
1	7K553	Cable Assy
2	7C519	Quadrant Assy
3	—	Brake Pedal Support
4	2457	Clutch Pedal Pad
5	7519	Clutch Pedal
6	E662258-S76	Retainer Ring
7	—	Front Sidemember Assy
8A	N610957-S2	Screw
9	7C511	Insulator
10B	377537-S2	Screw
11	352358-S2	Hairpin Clip
12	2A691	Clevis
13	76025-S8	Clevis Pin
14	11A156	Starter/Clutch Interlock Switch Assy
15	42358	Screw
16	N803419-S2	Hairpin Clip
17C	N620469-S2	Nut
A		Tighten to 8-12 Nm (71-106 Lb-In)
B		Tighten to 3.5-4.5 Nm (31-39 Lb-In)
C		Tighten to 48-72 Nm (36-53 Lb-Ft)
