Flywheel and Engine Dowels

Removal

Dowels can be removed by using a drift pin where the dowel is installed in a drilled hole, and vise grip pliers where the dowel is installed in a blind hole. They should be pulled or driven from their seat, taking care not to damage surface area around dowel during removal.

Installation

Solid-Type Dowels—5.0L Engine

All solid-type dowels can be installed by driving them into place using a brass or plastic mallet. Care should be exercised to drive the dowel squarely into place until fully seated and not to damage surrounding surface areas.

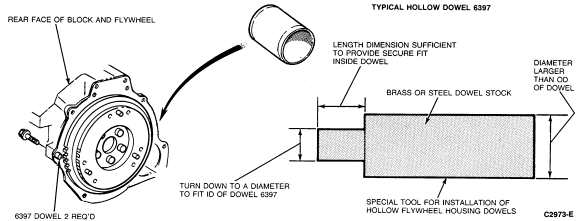

Hollow Dowels—2.3L OHC Engine

Installation can be easily accomplished by fabricating a simple tool from steel or brass dowel stock. Insert the tool into the dowel, and with the dowel squarely in position, drive it into the hole in the engine block until it is fully seated.
