Section 07-03: Transmission, Manual—T50D
1993 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY

Bearing Retainer Seal, Front



Removal

  1. Remove bearing race and end play shim.
  1. Using a screwdriver, carefully pry seal from bearing retainer.





Installation

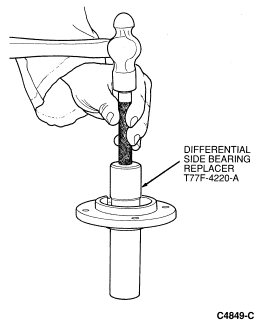

  1. Using Differential Side Bearing Replacer T77F-4220-A, install new seal.
  1. Install end play shim and bearing race.

    NOTE: If seal is being replaced as a part of a transmission overhaul, do not install the end play shim.
