Section 07-03: Transmission, Manual—T50D
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

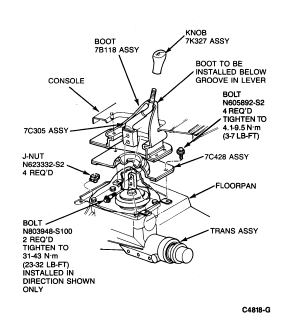

Shift Lever and Boot Assembly



Removal

  1. Remove knob by rotating counterclockwise.
  1. Remove console trim and lift boot over shift lever.
  1. Remove two bolts retaining shift lever to transmission.


Installation

 CAUTION: Shift lever bolts must only be installed in one direction (from LH side of the shift lever).

  1. Install the two bolts retaining the shift lever to transmission. Tighten to 31-43 Nm (23-32 lb-ft).
  1. Install console trim and shift boot.
  1. Install knob by rotating clockwise until required installation torque increases, then turn knob an additional 180 degrees and align graphics to front of vehicle.
