Transmission, Manual—T50D

The T5OD is a five-speed manual transmission with 5th speed as an overdrive gear. The 1st through 4th gears and reverse gear are meshed within the case. The 5th speed gear and synchronizer are located on the back of the case in the extension housing. The floor-mounted shift lever operates a shift rail which extends from the extension housing turret to the shift cover. The 1st/2nd and 3rd/4th shift forks are mounted in the cover. The 5th speed synchronizer and reverse sliding gear are shifted through an intermediate lever mounted on a pivot pin. A shift interlock system, located in the cover, prevents engagement of more than one gear. The shift detent is located in the extension housing turret and consists of a detent plate, offset lever and spring-loaded ball. All gears except reverse are synchronized and helical cut for smooth, crisp shifts and quiet operation. Reverse is provided through a reverse idler gear which slides along a shaft to engage spur gears on the countershaft and output shaft. The case is aluminum and all fasteners are metric. The gear ratios for the 2.3L and 5.0L are shown in the following chart.

Gear	2.3L EFI	5.0L HO+
1st	3.97:1	3.35:1
2nd	2.34:1	1.99:1
3rd	1.46:1	1.34:1
4th	1.00:1	1.00:1
5th	0.79:1	0.68:1
REV	3.71:1	3.15:1

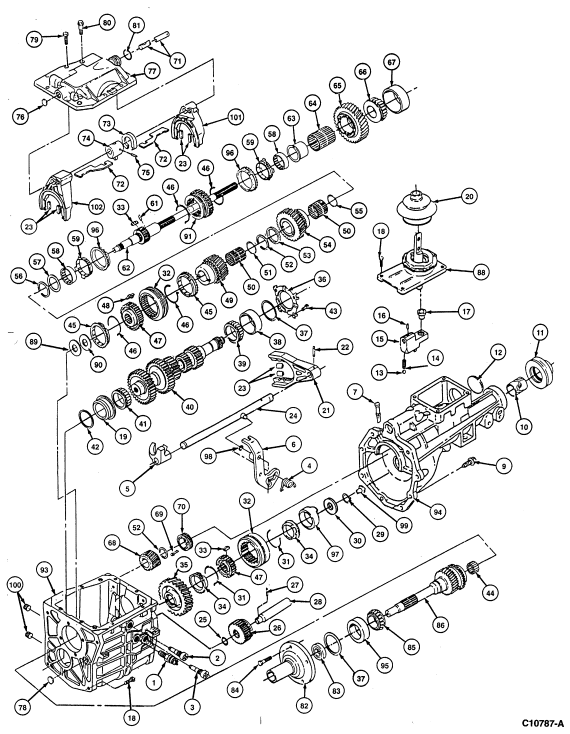

Item	Part Number	Description
1	15220	Backup Lamp Switch
2	7K024	Reverse Gear Shift Lever Pivot Pin
3	7N332	Spring Anchor Pin Bolt
4	7E485	Reverse Positioning Spring
5	7231	Reverse Gear Shift Fork
6	7K002	Reverse Gear Shift Lever
7	7034	Vent
8	87008-S	O-Ring
9	E800152-S	Bolt
10	7A034	Extension Housing Bushing
11	7052	Input Shaft and Extension Housing Seal
12	7K381	Extension Housing Plug
13	372720-S	Ball
14	7234	Detent Spring
15	7F018	Gear Shift Offset Lever Assembly
16	357479-S	Pin
17	7K453	Gear Shift Damper Bushing
18	7A443	Bolt
19	7C108	Clamp
20	7277	Boot
21	7230	Gear Shift Fork
22	357479-S	Pin
23	7L082	Gear Shift Fork Insert
24	7240	Rail Assembly
25	7E397	Reverse Gear Overtravel Stop
26	7141	Reverse Idler Gear and Bushing Assembly
27	357479-S	Pin
28	7140	Reverse Idler Gear Shaft
29	7059	Snap Ring
30	7109	Synchronizer Blocker Ring
31	7C396	5th Gear Synchronizer Retainer
32	7124	Synchronizer Sleeve
33	7A044	Synchronizer Hub Insert
34	7107	Synchronizer Blocking Ring
35	7144	5th Speed Drive Gear
36	7195	Countershaft Rear Bearing Retainer
37		Selective Shims
38	1202	Countershaft Rear Bearing Cup
39	1201	Countershaft Front and Rear Bearing Cone and Roller Assembly
40	7113	Countershaft Cluster Gear
41	7F431	Countershaft Bearing Assembly
42	7693	Ring
44		Snap Ring
45	7107	Synchronizer Blocking Ring
46	7109	Synchronizer Retaining Spring
47	7124	Synchronizer Hub
48	7A044	Synchronizer Hub Insert
49	7B340	3rd Speed Gear
50	7B369	2nd and 3rd Gear Bearing Assembly
51	7728	3rd Gear Bearing Spacer
52	7064	Snap Ring
53	7119	Thrust Washer
54	7102	2nd Speed Gear
55	7B320	2nd Gear Bearing Spacer
56	7160	2nd and 3rd Gear Synchronizer Retaining Ring
57	7117	1st and 2nd Gear Synchronizer Thrust Washer
58	7175	1st and 2nd Gear Cone—Inner
59	7174	1st and 2nd Gear Cone—Outer
60	371350-S	Ball
61	7K218	1st and 2nd Gear Synchronizer Hub Pin
62	7061	Output Shaft
63	7173	1st Gear Bearing Sleeve
64	7127	1st Gear Bearing Assembly
65	7100	1st Speed Gear
66	1216	Output Shaft Cone and Roller Assembly—Rear
67	7169	Output Shaft Rear Bearing Cup
68	7K316	Gear—5th Speed Driven
69	17B336	Speedometer Drive Gear Retaining Clip
70	17285	Speedometer Drive Gear
71	7358	Gear Shift Shaft
72	7N232	Gear Shift Selector Arm Plate
73	7K201	Gear Selector Interlock Plate
74	7302	Control Selector Arm Assembly
75	305061-S	Pin
76	74113-S	Plug
77	7222	Cover
78	7C031	Pin
79	E602167-S	Bolt
80	N800037-S	Bolt
81	87038-S	O-Ring
82	7050	Input Shaft Bearing Retainer
83	7052	Seal Assembly
84	N602187-S	Bolt
85	7025	Input Shaft Roller Bearing
86	7017	Input Shaft
87		Input Shaft-to-Output Shaft Bearing Assy
88	7C305	Shift Lever
89	7K453	Tizz Bushing
90	7119	Thrust Washer
91	7124	1st and 2nd Synchronizer Sleeve
92	—	Not Used
93	7005	Case
94	7A039	Extension Housing
95	1202	Bearing Cup
96	7107	Synchronizer Blocking Ring
97	7M000	Ring, Reverse Brake
98	7156	Reverse Idler Gear Retaining Ring
99	7L278	Oil Pick-Up Funnel
100	7A010	Case Plug
101	7230	Gear Shifter Fork; 1-2 Shift
102	7230	Gear Shifter Fork; 3-4 Shift
