Axle Bumper—Pinion Noise Center

5.0L Engine

Removal

1. Raise vehicle on a hoist. Refer to Section 00-02.

2. Remove three bracket retaining bolts.

3. Remove bumper and bracket assembly.

4. Remove bumper-to-bracket retaining nut. Remove bumper from bracket.

Installation

1. Position bumper to bracket and install retaining nut. Tighten to 16-27 Nm (12-20 lb-ft).

2. Align bumper and bracket assembly with J-nuts in floorpan.

3. Install three bracket retaining bolts. Tighten to 10-16 Nm (8-11 lb-ft).

4. Lower vehicle.

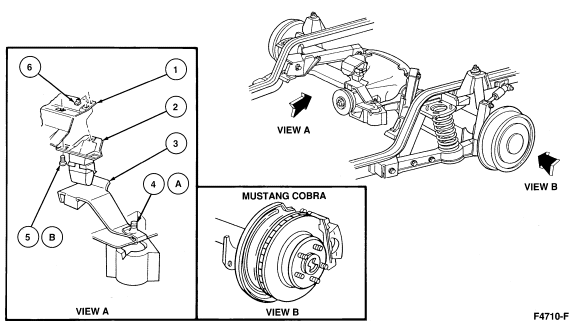

   Item	Part Number	Description
   1	—	Floorpan
   2	4K223	Pinion Noise Bumper Assy
   3	4A215	Pinion Noise Strike Plate Assy
   4A	56541-S56	J-Nut (2 Req'd)
   5B	N605891-S56	Bolt (3 Req'd)
   6	N804272-S56	Nut (3 Req'd)
   A		Tighten to 41-54 Nm (31-39 Lb-Ft)
   B		Tighten to 10-16 Nm (8-11 Lb-Ft)
