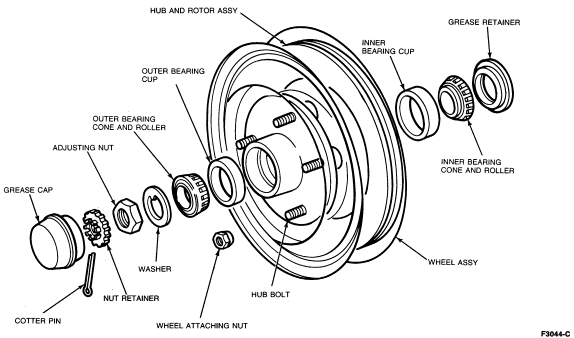

Wheel Assembly

Each front wheel is bolted to the hub and rotor assembly. There are two opposed, tapered roller bearings and a grease retainer installed in the hub. The grease retainer prevents grease leakage onto the rotor.

An adjusting nut, nut retainer, and cotter pin retain the assembly to the spindle.
