Wheel Turning Angle, Front

When the inside wheel is turned 20 degrees, the turning angle of the outside wheel should be as specified. The turning angle cannot be adjusted directly, because it is a result of the combination of caster, camber and toe adjustments and should, therefore, be measured only after these adjustments have been made. If the turning angle does not measure to specification, check the spindle or other suspension or steering parts for a bent condition.

After front-wheel alignment factors have been checked, make the necessary adjustments. Do not attempt to adjust front-wheel alignment by bending the suspension or steering parts.

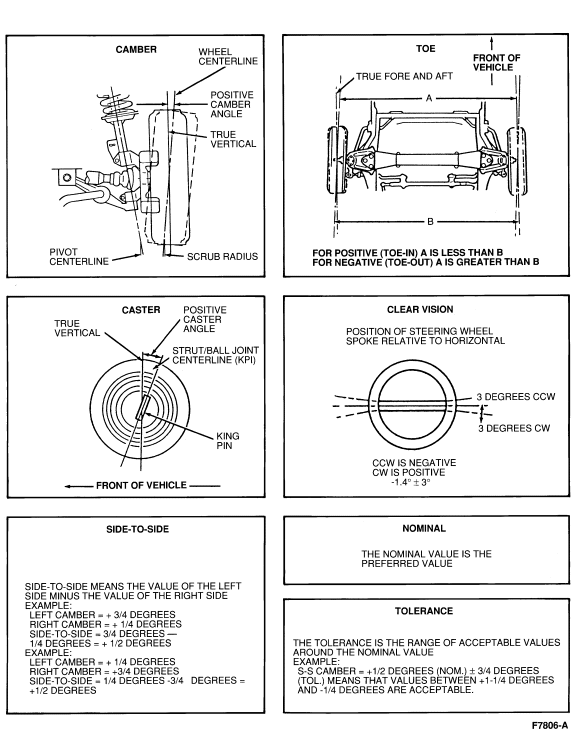

Reference Definitions

NOTE: Set tire pressure to specification.

NOTE: The caster is preset at the factory and cannot be changed. Toe and camber are adjustable.

After front-wheel alignment factors have been checked, make the necessary adjustments. Do not attempt to adjust front-wheel alignment by bending the suspension or steering parts.
