Section 03-05: Drive Belts, Accessory
1993 Mustang Workshop Manual
ADJUSTMENTS

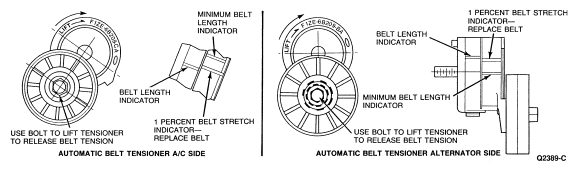

Belt Wear Indicator Marks



2.3L Engine






5.0L Engine




Automatic tensioners do not have to be removed to remove a drive belt. To remove a drive belt, rotate the tensioner away from the belt.

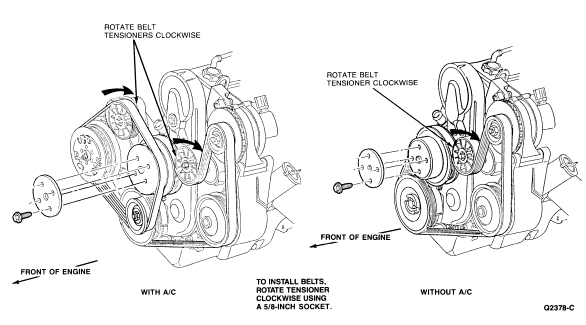

Belt Configuration—2.3L OHC

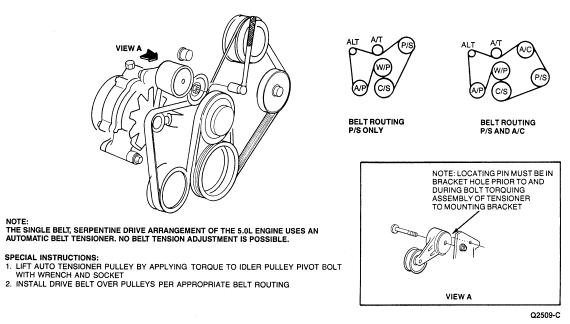

Belt Configuration—5.0L Engine




 CAUTION: Ensure belt is properly installed before starting engine, otherwise belt damage will occur.
