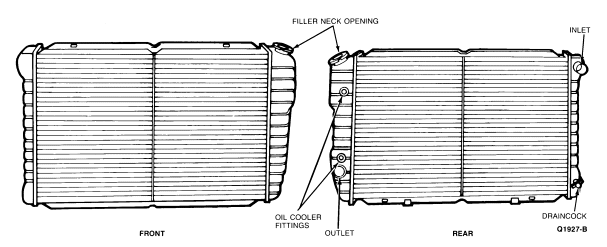

Crossflow Radiators

These radiators are of the tube and louvered-fin-core type with the tubes arranged horizontally for crossflow of the coolant. Two header tanks, one on each side of the radiator, provide uniform distribution of the coolant to the crossflow tubes. The header tank, or chamber, on the LH side of the radiator contains a heat exchanger for cooling the transmission fluid. All crossflow radiators are equipped with a coolant recovery system.
