Section 02-03: Engine and Transmission Mounting | 1993 Mustang Workshop Manual |
REMOVAL AND INSTALLATION
Transmission Insulators
Sedan With A4LD Transmission
NOTE: The rear support is located at the transmission extension housing.
Whenever self-locking nuts are removed, they must be replaced with new
self-locking nuts.
Removal
- Support transmission with a jack and a wood block. Remove nut retaining the
rear insulator to the crossmember.
- Remove the two bolts and nuts retaining the crossmember to the body
brackets. Remove the crossmember by raising the transmission slightly with the
jack.
- Remove the two bolts retaining the rear insulator to the intermediate
bracket and remove the insulator and retainer.
Installation
- Position the rear insulator and retainer on the transmission. Install the
two retaining bolts and tighten to 68-95 Nm (51-70 lb-ft).
- Install the crossmember to the body brackets. Tighten the retaining nuts
and bolts to 47-68 Nm (35-50 lb-ft).
- Lower the transmission and install the insulator to the crossmember
retaining nut. Tighten to 88-119 Nm (65-87 lb-ft).

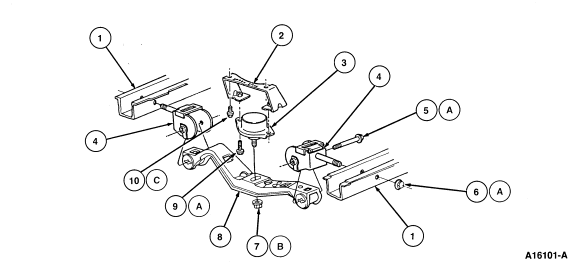

Sedan With A4LD Transmission
| Item |
Part Number |
Description |
|
1
|
—
|
Sidemember
|
|
2
|
6A026
|
Bracket
|
|
3
|
6068
|
Insulator
|
|
4
|
6A098(RH)
6A099(LH)
|
Transmission Support Assy
|
|
5A
|
N805080-S100
|
Bolt (2 Req'd)
|
|
6A
|
N620482-S2
|
Nut (2 Req'd)
|
|
7B
|
N803742-S36
|
Nut
|
|
8
|
5059
|
Crossmember Assy
|
|
9A
|
N605799-S100
|
Bolt (2 Req'd)
|
|
10C
|
387174-S2
|
Bolt (2 Req'd)
|
|
A
|
|
Tighten to 47-68 Nm (35-50 Lb-Ft)
|
|
B
|
|
Tighten to 88-119 Nm (65-87 Lb-Ft)
|
|
C
|
|
Tighten to 68-95 Nm (51-70 Lb-Ft)
|
All Except Sedan With A4LD Transmission
The rear support is located at the transmission extension housing.
CAUTION: Whenever self-locking mounting bolts and nuts are removed, they must
be replaced with new self-locking bolts and nuts.
Removal
- Support the transmission with a jack and wood block. Remove the two nuts
attaching the insulator to crossmember.
- Remove the two bolts and nuts attaching the crossmember to the body
brackets and remove the crossmember by raising the transmission slightly with
the jack.
- Remove the two bolts attaching the rear insulator to the transmission and
remove the insulator and retainer.
Installation
- Position the rear insulator and retainer on the transmission. Install the
two attaching bolts. Tighten to 68-95 Nm (51-70 lb-ft).
- Install the crossmember-to-body through bolts. Tighten the attaching nuts
to 47-68 Nm (35-50 lb-ft).
- Lower the transmission. Install the insulator to crossmember attaching
nuts. Tighten to 34-48 Nm (26-35 lb-ft).
Except 2.3L Sedan With A4LD Transmission
Item |
Part Number |
Description |
|
1
|
6068
|
Insulator Assy
|
|
2
|
6054
|
Retainer
|
|
3A
|
387174-S2
|
Bolt (2 Req'd)
|
|
4
|
6A098(RH)
6A099(LH)
|
Transmission Support
|
|
5B
|
382802-S2
|
Nut (2 Req'd)
|
|
6
|
5059
|
Crossmember Assy
|
|
7
|
N802044-S2
|
Bolt (2 Req'd)
|
|
8C
|
N620482-S2
|
Nut (2 Req'd)
|
|
A
|
|
Tighten to 68-95 Nm (51-70 Lb-Ft)
|
|
B
|
|
Tighten to 34-48 Nm (25-35 Lb-Ft)
|
|
C
|
|
Tighten to 47-68 Nm (35-50 Lb-Ft)
|
