Mirror Glass, Manual

Removal

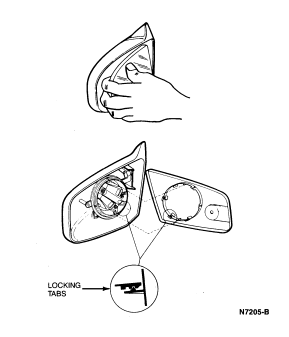

1. Push inner edge of mirror glass into the housing.

2. Grip outer edge of mirror glass and pull out until glass snaps out of motor assembly.

Installation

1. Line up locking tabs of the mirror glass to the housing as shown.

2. Firmly push the glass into place with the palm of the hand until it locks in.
