Before removing the exterior mouldings, it should be determined by the type of retainer used whether a respective door, quarter or luggage compartment trim panel must first be removed to provide access.

If a weld stud is distorted or broken off, it should be replaced with a screw (Part No. 379560-S101).

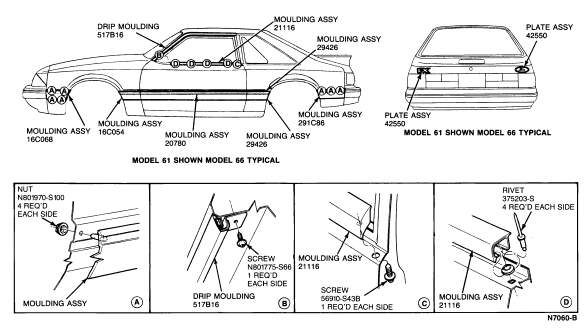

Mouldings, Exterior

Before removing the exterior mouldings, it should be determined by the type of retainer used whether a respective door, quarter or luggage compartment trim panel must first be removed to provide access. If a weld stud is distorted or broken off, it should be replaced with an oval head blind rivet Part No. (383229-S).

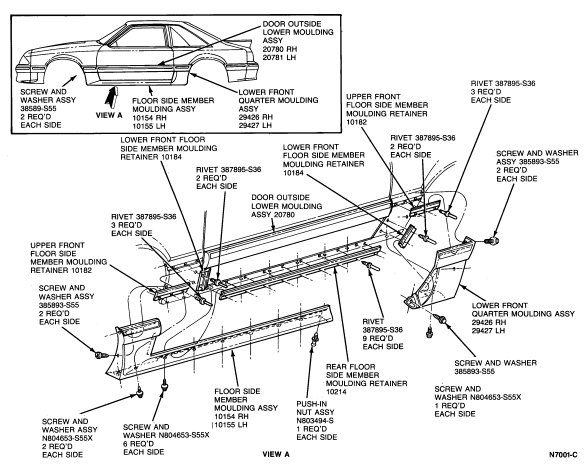

Except Cobra

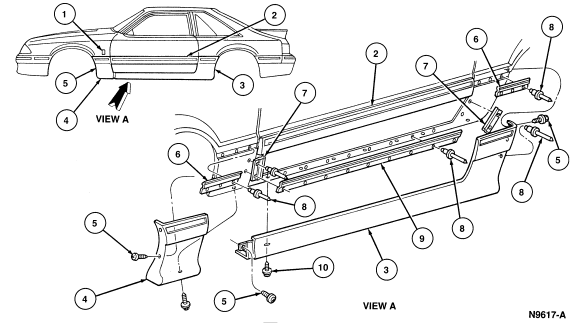

Cobra










Cobra

Item	Part Number	Description
1	16702	Cobra Identification Plate
2	20780 (RH) 20781 (LH)	Door Outside Lower Moulding
3	29426 (RH) 29427 (LH)	Quarter Panel Outside Lower Front Moulding
4	10154 (RH) 10155 (LH)	Floor Side Member Moulding Assy
5	385893-S55	Screw and Washer Assy (5 Req'd)
6	10182	Upper Front Floor Side Moulding Retainer (2 Req'd)
7	10184	Lower Front Floor Side Member Moulding Retainer (2 Req'd)
8	387895-S36	Rivet (19 Req'd)
9	10214	Rear Floor Side Member Moulding Retainer
10	N804653-S55X	Screw and Washer Assy (7 Req'd)
