The interior trim component Removal and Installation procedures generally apply to all models. If some of the Steps do not apply to the particular models being serviced, proceed to the next Step.

Carpets and Floor Mats

Front and Rear—One-Piece

Removal

1. Remove front seats. Refer to Section 01-10A.

2. Remove rear seat. Refer to Section 01-10A.

3. Remove console assembly. Refer to Section 01-12.

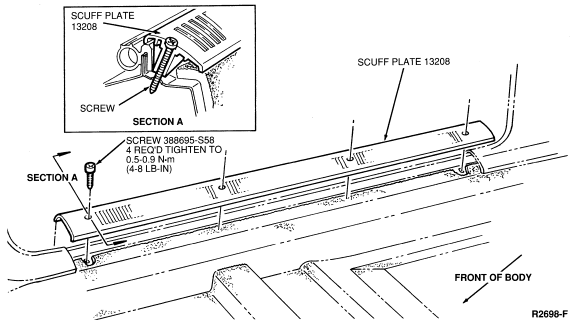

4. Remove scuff plate as outlined.

5. Remove cowl side trim panels as outlined.

6. Remove quarter trim panels as outlined.

7. Remove safety belts, as required. Refer to Section 01-20A.

8. Remove pushnut from weld stud on dash panel (underneath accelerator pedal).

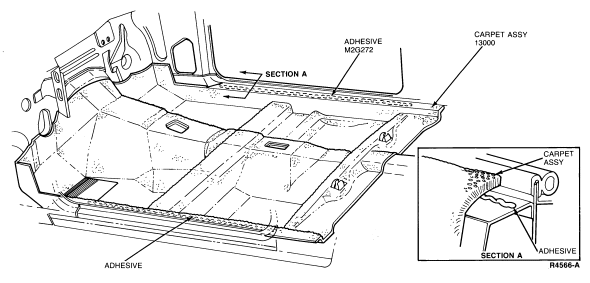

9. Remove carpets and floor mats.

Installation

1. Position carpet in vehicle.

2. Install pushnut on weld stud on dash panel (underneath accelerator pedal).

3. Install safety belts. Refer to Section 01-20A.

4. Install quarter trim panels as outlined.

5. Install cowl side trim panels as outlined.

6. Install scuff plate/lower body center pillar trim panels as outlined.

7. Install console assembly. Refer to Section 01-12.

8. Install rear seat. Refer to Section 01-10A.

9. Install front seats. Refer to Section 01-10A.
