The interior trim component Removal and Installation procedures generally apply to all models. If some of the Steps do not apply to the particular models being serviced, proceed to the next Step.

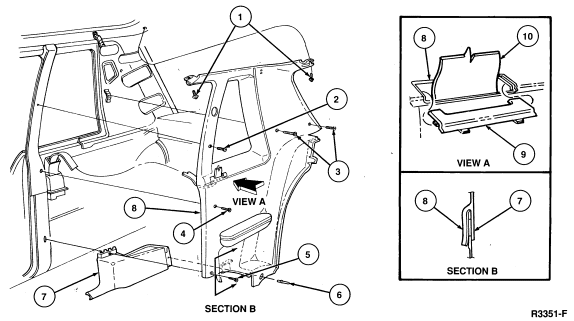

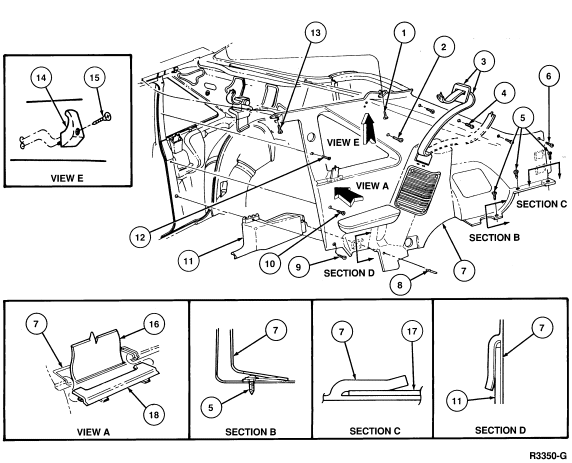

Trim Panel, Quarter

Removal and Installation

1. Remove rear seats. Refer to Section 01-10A.

2. Remove speaker grille (3-door only) and disconnect wiring.

3. Remove coat hook screw and coat hook.

4. Remove door sill scuff plate.

5. Remove front safety belt D-ring and remove safety belt bezel and remove belt anchor from floor. Route belt through opening.

6. Remove back window upper garnish moulding and unclip side garnish moulding.

7. Remove retaining screws (8 on 2-door, 13 on 3-door). It will be necessary to fold the rear carpet out of the way to gain access to some of the screws.

8. Remove rear shoulder belt bezel and remove belt anchor from floorpan (3-door only). Route belt through opening.

9. Remove quarter trim panel from vehicle.

10. To install, reverse Removal procedure.
