Door Opening Weatherstrips

Removal

1. Remove interior garnish mouldings that cover weatherstrip.

2. Pull weatherstrip off weld flange around door opening.

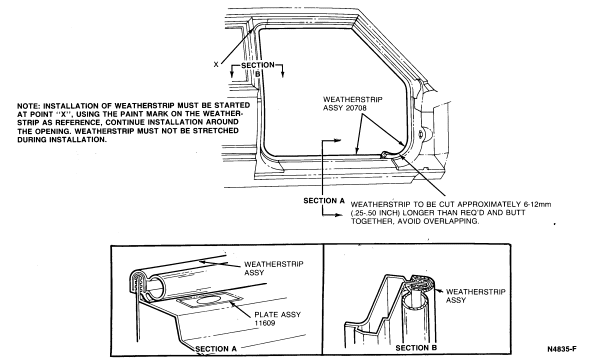

Installation

1. Inspect the weatherstrip mounting flange for distortion. Flatten any distortions by using vise grips or a pair of hammers.

2. Find the paint mark on the inboard side of the weatherstrip. Various colors are used.

3. Install the part of the weatherstrip marked with paint into the upper corner of the door opening.

4. Continue installing weatherstrip around door opening. Weatherstrip must not be stretched during installation.

5. Cut weatherstrip approximately 6-12mm (1/4 - 1/2 inch) longer than needed and butt ends together.

6. Install garnish mouldings.
