Hood Alignment

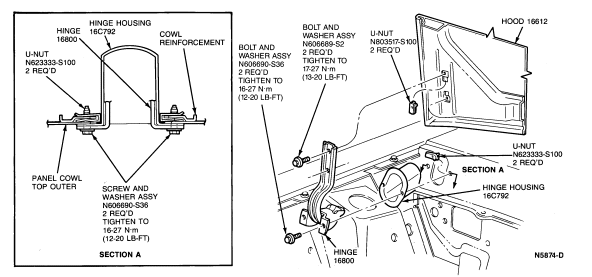

The hood can be adjusted fore-and-aft and side-to-side by loosening two hood-to-hinge retaining bolts at each hinge. Position hood as required and tighten the hood-to-hinge retaining bolts to 17-27 Nm (13-20 lb-ft).

To raise or lower the hood, loosen the hinge-to-cowl retaining bolts and raise or lower the hinge as necessary. After adjustments are made, tighten bolts to 16-27 Nm (12-20 lb-ft).
