Cowl Top Grille

Removal

1. Remove the RH windshield wiper arm from vehicle. Refer to Section 01-16.

2. Remove six screws retaining cowl top grille to body from the top of grille.

3. Carefully raise grille from the vehicle and disconnect washer hose from the jet and remove the grille.

Installation

1. Position cowl top grille to body, connect washer hose to washer jet and install grille to body.

2. Install six screws to top of grille.

3. Install windshield wiper arm to vehicle.

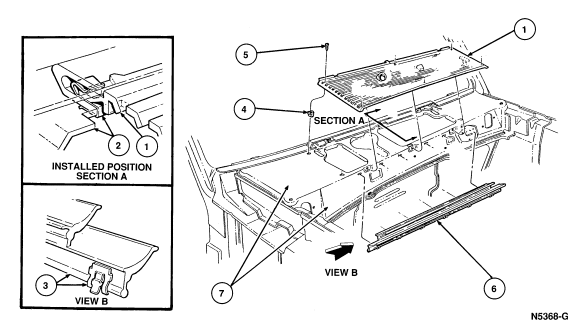

   Item	Part Number	Description
   1	—	Cowl Top Vent Grille
   2	—	Moulding Assy
   3	16A942	Pad Assy
   4	02316	Retainer (6 Req'd)
   5	53935-S43B	Screw (6 Req'd)
   6	16A942	Hood on Cowl Pad Assy
   7	—	Cowl Top Outer Panel
