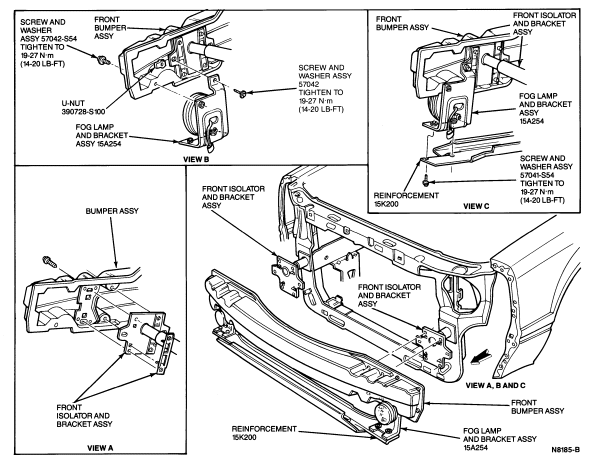

Remove six retaining screws from bottom of GOP fascia to lamp reinforcement.
Disconnect wiring to LH and RH lamps.
Remove two nuts (one each lamp) retaining lamp assembly and mounting
bracket. Pull lamps out through front of fascia.
Remove four retaining screws (two each side) retaining lamp mounting
bracket to bumper (two from backside of bumper and two through lamp opening in
fascia).
Carefully pull down on bottom edge of GOP and remove mounting brackets and
reinforcement.
Installation
Pull bottom edge of GOP and carefully position reinforcement on GOP.
Line up two holes on back side of bumper and install two screws (one each
side). Tighten to 19-27 Nm (14-20 lb-ft).
Install two retaining screws through lamp opening in fascia retaining
mounting bracket to bumper. Tighten to 19-27 Nm (14-20 lb-ft).
Position lamps to mounting brackets and install two retaining nuts (one
each lamp). Refer to Section 17-01.
Connect wiring to RH and LH lamps.
Install six screws retaining GOP fascia to lamp reinforcement. Tighten to
8-14 Nm (6-11 lb-ft).
