Section 01-00: Body—Service | 1993 Mustang Workshop Manual |
CAUTION: Never apply heat to the bumper energy absorbers. Heat could cause the
material inside the absorbers to expand and flow out of the absorbers or crack
the metal housing. Always remove the absorbers before performing body frame
service near them.
CAUTION: Never apply excessive heat to bumper surface. Heat could cause the
bumper to distort.
CAUTION: When collecting exhaust fumes in service area, never attach a metal
collector to the exhaust tail pipe as the heat could damage the bumper.
Tools Required:
Underbody dimensions are shown. Underbody checking and service procedures
follow. Measuring can be done using Rotunda Complete Laser Measuring System
073-00450 or equivalent.

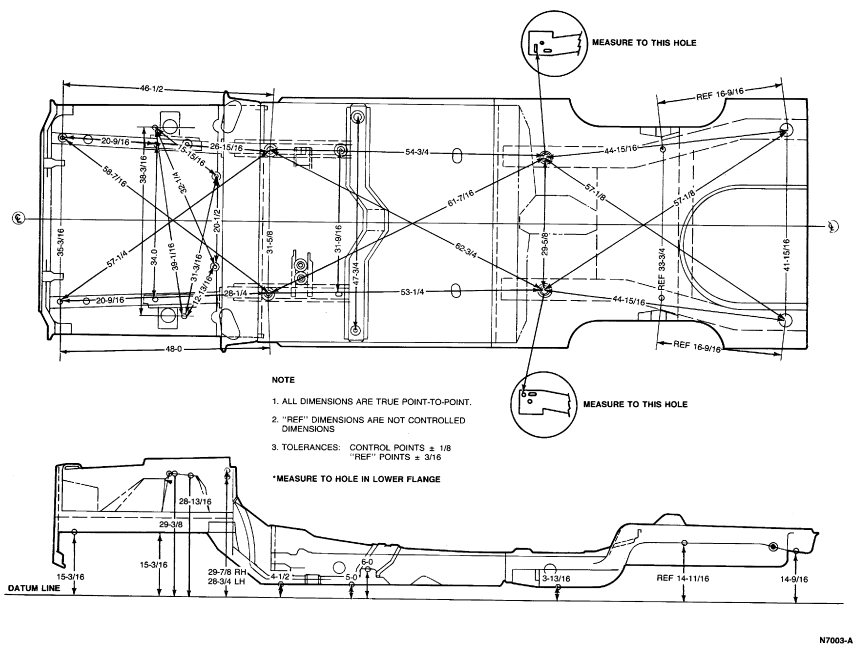

Underbody Dimensions
